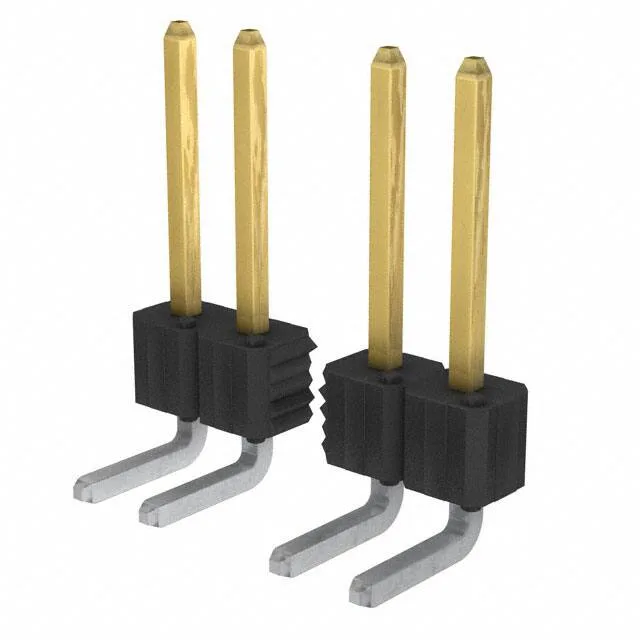

10118884-508009LF — Amphenol product photo
Amphenol

10118884-508009LF Amphenol BERGSTIK II Header 8 Pos

MPN10118884-508009LF
Active

Amphenol ICC (FCI) BERGSTIK II header, order code 10118884-508009LF, 8 positions, single row, 0.100" (2.54 mm) pitch, gold-plated mating contacts 30.0 µin (0.76 µm), through-hole right-angle, solder termination.

$1.0889Ref. price · indicative, final on quote
10118884-508009LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10118884-508009LF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

BERGSTIK II 8-position breakaway header

The 10118884-508009LF is the 8-position single-row member of Amphenol ICC (FCI)'s BERGSTIK II breakaway header line. Mounts through-hole right-angle.

Active production, no direct replacement

Status is Active per Amphenol ICC (FCI).

Frequently asked questions

Where can I buy 10118884-508009LF and how do I get a price?

Orderable under the listed part number.
