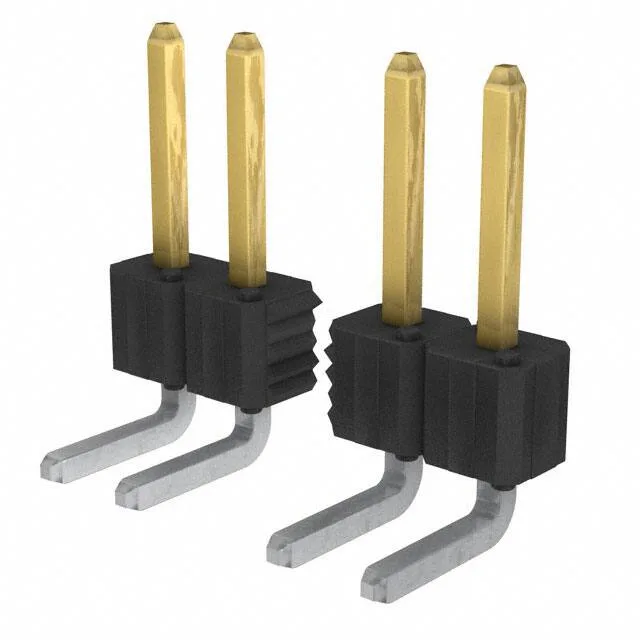

Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10118884-510004LF, 10 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
Amphenol BERGSTIK II 10118884-510004LF Header, 10-Pos 2.54mm
MPN10118884-510004LF
Active
Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10118884-510004LF, 10 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.0170Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 10118884-510004LF in this Pin Headers, Sockets & Housings family?
No same-series peer with a different position count is listed in the available data.
