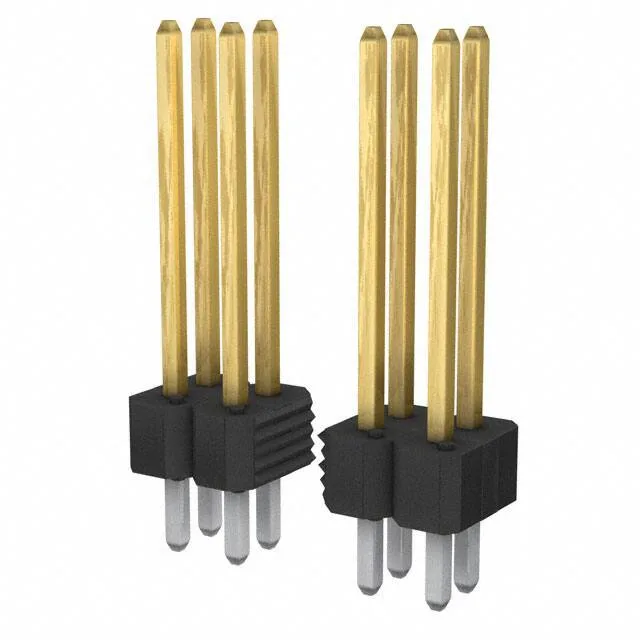

Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10119109-312002LF, 12 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through hole, solder termination.
10119109-312002LF Amphenol ICC BERGSTIK II Header, 12 Pos
MPN10119109-312002LF
Active
Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10119109-312002LF, 12 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through hole, solder termination.
$2.7337Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.500\" (12.70mm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
Product details
Frequently asked questions
What is the mating interface style of 10119109-312002LF?
It is a Board to Board style, unshrouded header with push-pull fastening.
