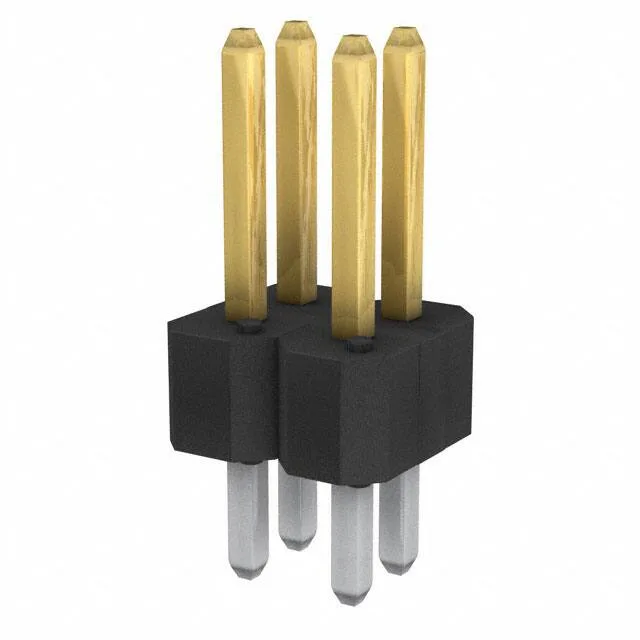

Amphenol BERGSTIK II header, order code 10119109-504022LF, 4 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
10119109-504022LF BERGSTIK II Header, 4-Pos, 0.100" Pitch
MPN10119109-504022LF
Active
Amphenol BERGSTIK II header, order code 10119109-504022LF, 4 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
$0.3927Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 10119109-504022LF in this component family?
No specific pin-compatible alternative is listed in the evidence.
