Right-angle breakaway header, 16 positions at 0.100" pitch
The 10119110-516002LF is the 16-position member of Amphenol ICC (FCI)'s BERGSTIK II header line, a board-to-board breakaway style with unshrouded push-pull fastening.

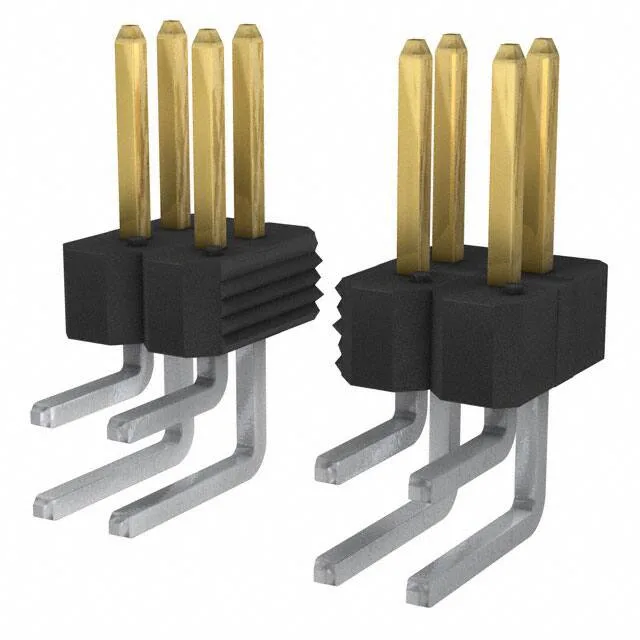

Amphenol BERGSTIK II 10119110-516002LF Header, 16 pos
MPN10119110-516002LF
Active
Amphenol ICC (FCI) BERGSTIK II header, order code 10119110-516002LF, 16 positions, dual row, 0.100" (2.54 mm) pitch, gold 30.0µin (0.76µm) mating contacts, through-hole right-angle, solder termination.
$2.0509Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.240\" (6.10mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 10119110-516002LF?
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) — contact the distributor for the current declaration.
