11-position breakaway header, 0.100" pitch
The 10119333-103-11LF is the 11-circuit member of Amphenol ICC's BERGSTIK breakaway header line, a single-row unshrouded board-to-board header with push-pull fastening.

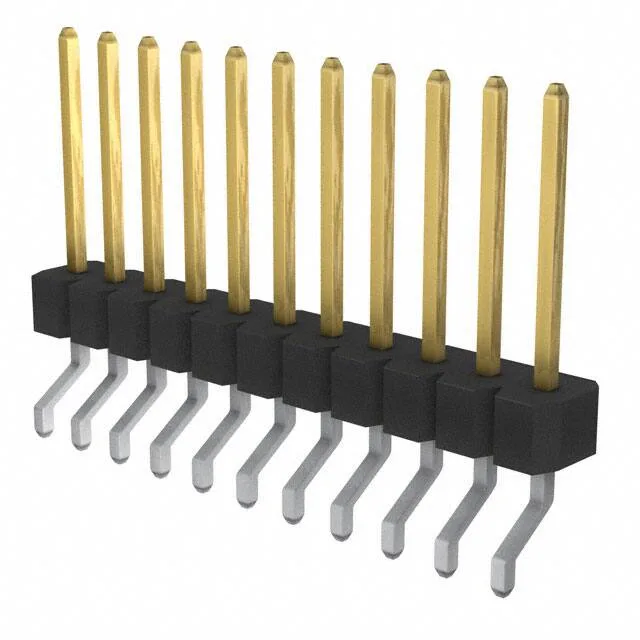

10119333-103-11LF Amphenol ICC BERGSTIK Header, 11 Pos
MPN10119333-103-11LF
Active
Amphenol ICC (FCI) BERGSTIK header, order code 10119333-103-11LF, 11 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT mating contacts, surface-mount right-angle, solder termination.
$1.0810Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.150\" (3.81mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.420\" (10.67mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
