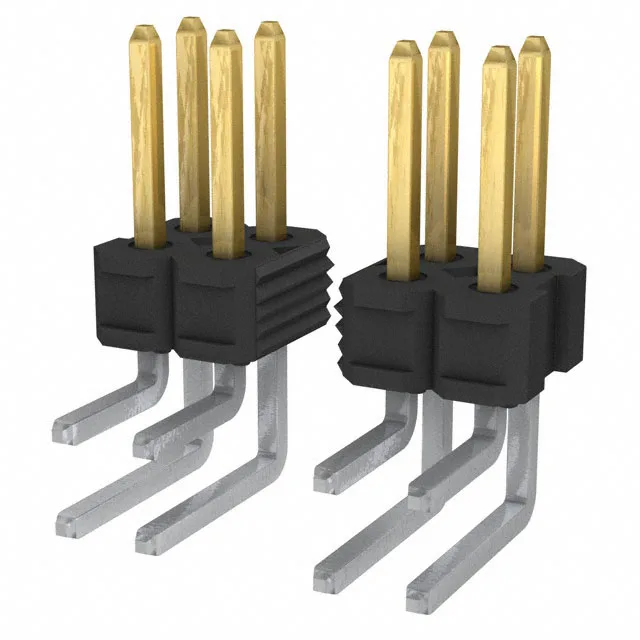

Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 10121350-101LF, 24 positions, dual row, 0.100" (2.54 mm) pitch, unshrouded, through-hole right-angle, solder termination, gold GXT™ mating contacts.
10121350-101LF BERGSTIK® Header, 24 Pos, 2.54mm Pitch
MPN10121350-101LF
Active
Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 10121350-101LF, 24 positions, dual row, 0.100" (2.54 mm) pitch, unshrouded, through-hole right-angle, solder termination, gold GXT™ mating contacts.
$1.9489Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.242\" (6.15mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the board-to-board style of this connector?
The 10121350-101LF is listed as a Board to Board style header, unshrouded, with push-pull fastening.
What compliance documentation is available for the 10121350-101LF?
RoHS/REACH compliance documentation is provided with the product.
