0.100" Pitch, 24-Position Breakaway Header — Fit Check for the Board Layout
In a board-to-board application where the header sees periodic rework or field replacement, that gold thickness keeps contact resistance stable over the product lifetime.

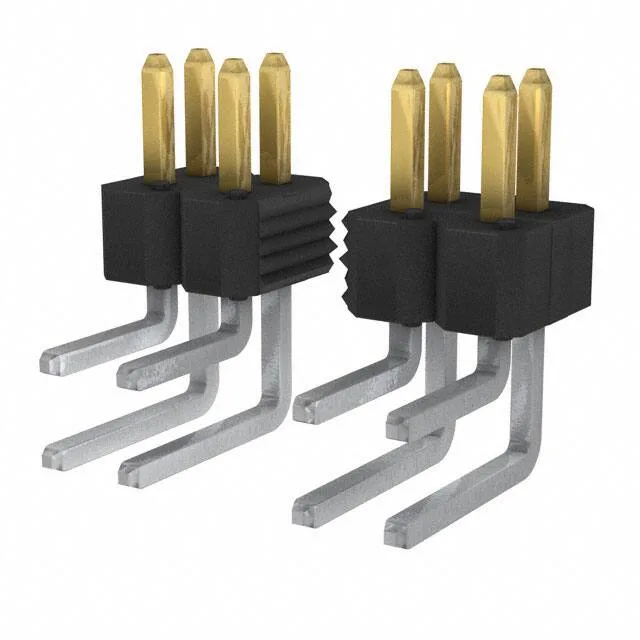

10122297-124004LF BERGSTIK® II Header, 24 Pos, 0.100" Pitch
MPN10122297-124004LF
Active
Amphenol ICC (FCI) BERGSTIK® II, 10122297-124004LF, Board to Board, Header, Breakaway, 24 Positions (18 Loaded), 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Unshrouded, 30.0µin (0.76µm) Gold Mating, Push-Pull
$1.1425Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the pitch of 10122297-124004LF?
The mating pitch is 0.100" (2.54 mm), with the same 0.100" row spacing. That puts it on the standard 0.100-inch grid, compatible with most industry-standard receptacles.
Is 10122297-124004LF shrouded or unshrouded?
Unshrouded — there is no plastic shroud around the pins.
Where can I buy 10122297-124004LF and how is it quoted?
Sourced through independent distribution against an RFQ.
