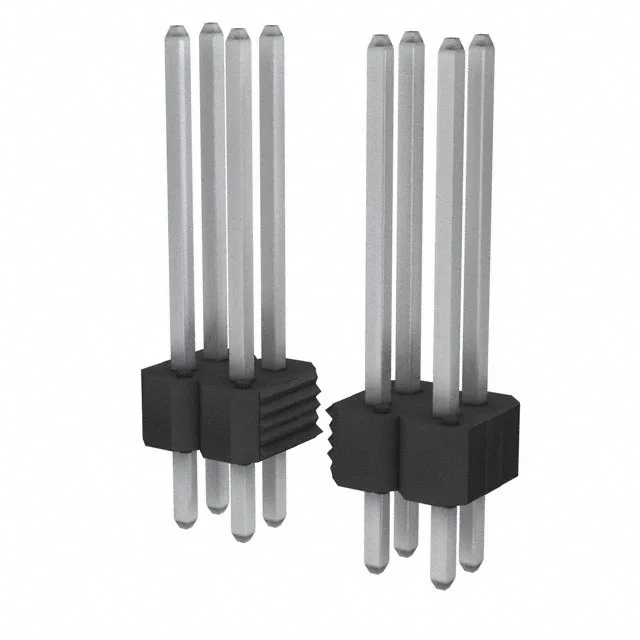

Amphenol 10122864-418002LF
MPN10122864-418002LF
Active
$0.6026Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.698\" (17.74mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.469\" (11.91mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
