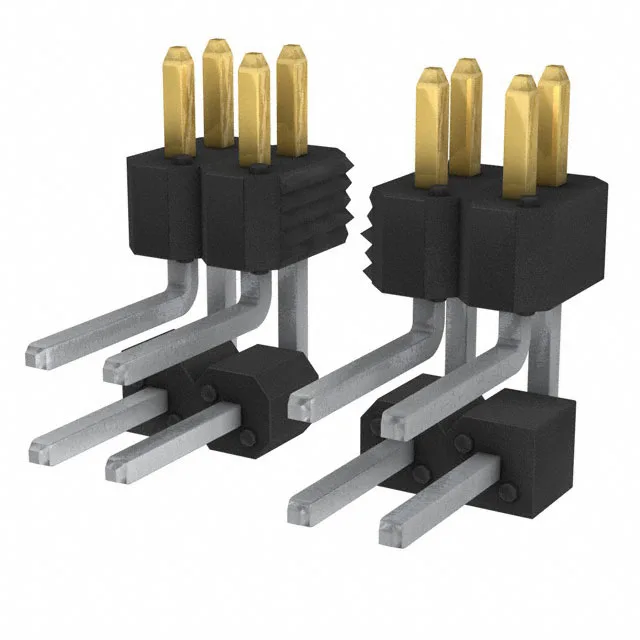

Amphenol BERGSTIK® II Series, Header, 10123427-406001LF, 6 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Tin Plating.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.206\" (5.23mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.118\" (3.00mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 10123427-406001LF: The post length of 0.206" (5.23mm) suits through-hole soldering on boards up to about 1.6mm thick; the square pin profile (0.025" square typical for this series) provides good solder-joint strength.
It is a 6-position, 2-row header with all positions loaded. The rows are spaced at 0.100" (2.54mm), and the pins are unshrouded male square pins.
No, it is unshrouded. The mating half must be a receptacle that aligns to the bare pins — typically a 0.100" pitch IDC socket or a crimp housing with a 2.54mm pitch.
