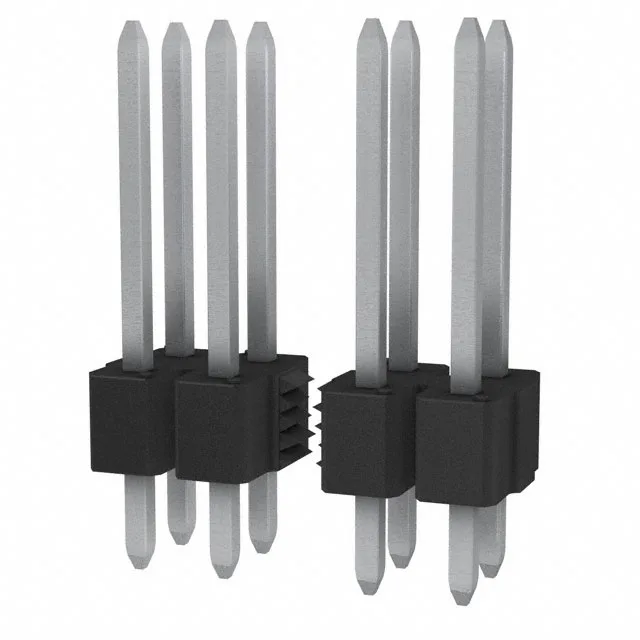

Amphenol ICC (FCI) BERGSTIK header, order code 10123500-412001TLF, 12 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
10123500-412001TLF Amphenol ICC BERGSTIK Header, 12 Pos
MPN10123500-412001TLF
Active
Amphenol ICC (FCI) BERGSTIK header, order code 10123500-412001TLF, 12 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
$0.5423Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.353\" (8.97mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
