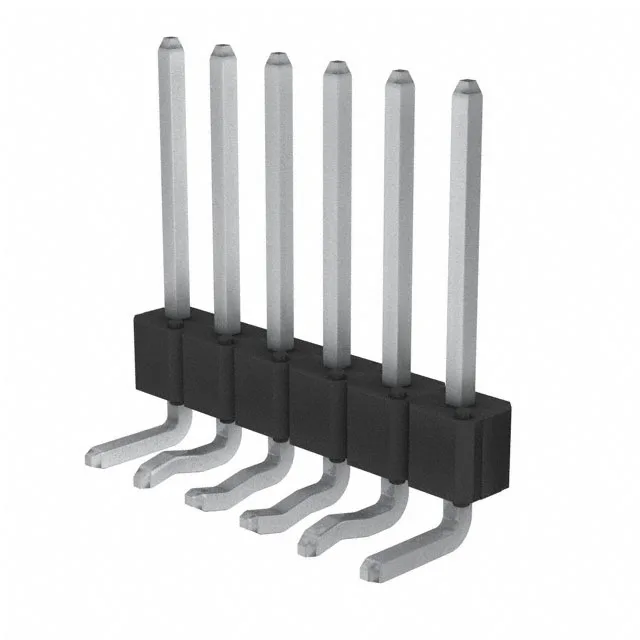

Amphenol 10124034-406001CLF
MPN10124034-406001CLF
Active
$0.3670Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.374\" (9.50mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
