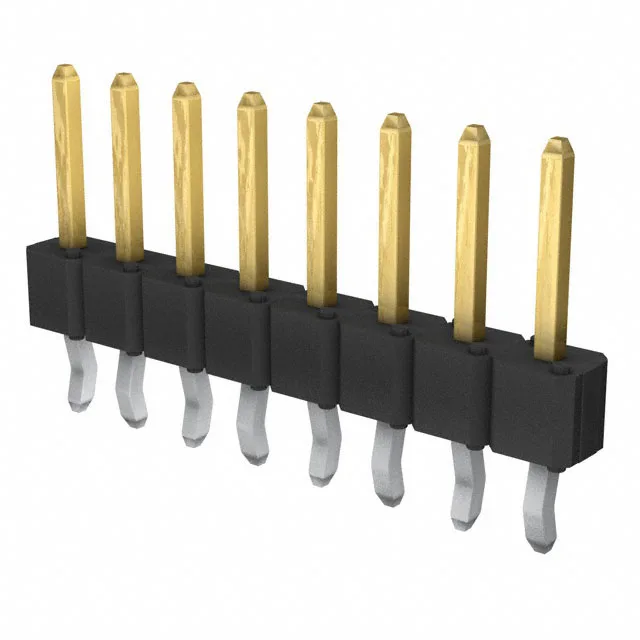

Amphenol FCI BergStik® II header, breakaway, order code 10125878-208003ALF, 8 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, male pin, square contact, through-hole, kinked pin solder termination, gold or GXT™ mating finish.
10125878-208003ALF BergStik II Header, 8 Pos, 0.100" Pitch
MPN10125878-208003ALF
Active
Amphenol FCI BergStik® II header, breakaway, order code 10125878-208003ALF, 8 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, male pin, square contact, through-hole, kinked pin solder termination, gold or GXT™ mating finish.
$0.5172Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) |
All specifications
| Parameter | Value |
|---|---|
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
