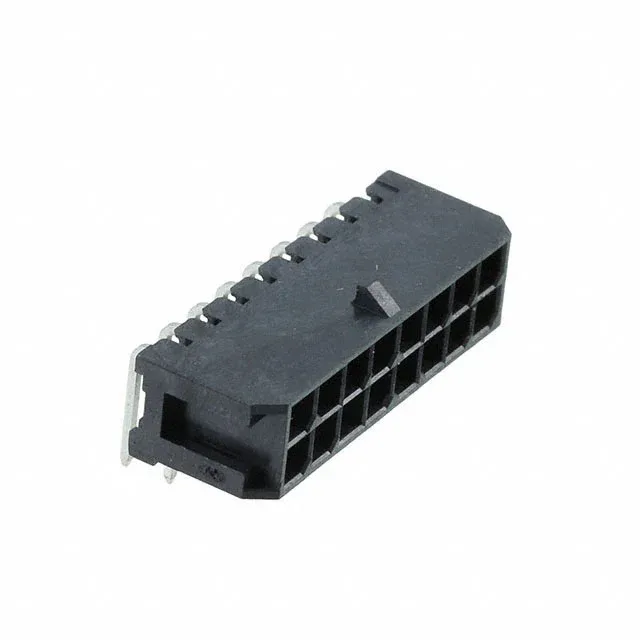

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127720-161LF, 16 circuits, 2 rows, 3.00 mm pitch, through-hole right-angle, shrouded 4-wall, locking ramp, tin-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 3.0 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.285\" (7.25mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 10127720-161LF: This gives positive retention in applications where vibration could otherwise work the connector loose. The mating contacts are finished with 100.0 µinch of tin over a copper alloy base. For outdoor or washdown duty, verify that the application's environmental spec aligns with tin-plated contacts.
It is RoHS compliant.
The mating pitch is 0.118" (3.00 mm), with the same 3.00 mm row spacing.
Through-hole, right-angle. The solder posts are 0.126" (3.20 mm) long, designed for plated through-holes on the PCB.
