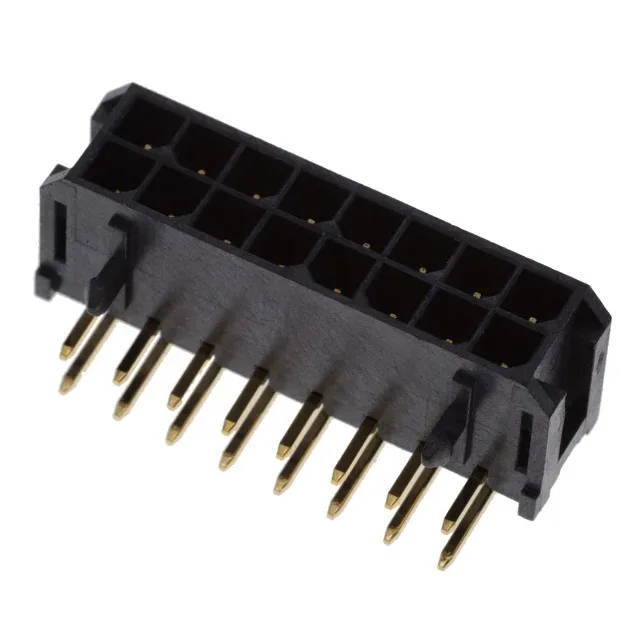

Right-angle header for wire-to-board power distribution
The insulation height of 0.285" (7.25 mm) and post length of 0.126" (3.20 mm) define the z-height budget for the mating receptacle and wire exit. Row spacing is also 0.118" (3.00 mm), matching the pitch — so the 16 pins occupy a 3.00 mm × 3.00 mm grid across two rows. The housing is black liquid crystal polymer (LCP) rated UL94 V-0, which means it will not support combustion in an enclosed equipment scenario.
The 22-position variant (10127720-222LF) is identical in every other spec — same pitch, row spacing, plating, locking ramp, board lock, and voltage rating. If your BOM calls for 16 positions, this is the correct pick; if you need more circuits on the same footprint, the 22-position version is a direct swap on the same 3.00 mm grid.
