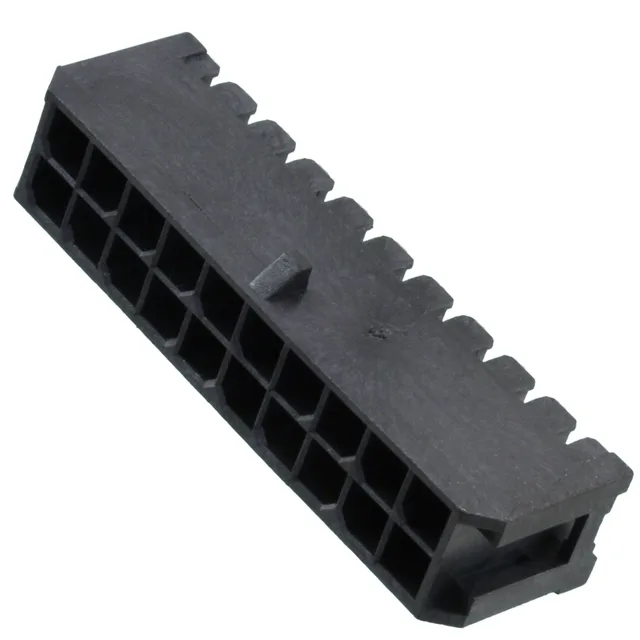

Amphenol ICC (FCI) 10127720-201LF Minitek Pwr 3.0 Header

MPN10127720-201LF
Active

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, order code 10127720-201LF, 20 positions, dual row, 3.00 mm pitch, 600 VAC/DC, tin-plated mating contacts, through-hole right-angle, solder termination.

$1.5800Ref. price · indicative, final on quote
10127720-201LF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10127720-201LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 3.0
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.285\" (7.25mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions20
Row spacing - mating0.118\" (3.00mm)
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact finish thickness - mating100.0µin (2.54µm)

Product details

20-circuit board-to-wire power header

The 10127720-201LF is the 20-circuit member of Amphenol ICC (FCI)'s Minitek® Pwr 3.0 header line, a shrouded board-to-wire power interconnect. Rated 600 VAC/DC with tin-plated mating contacts, the header mounts through-hole right-angle and carries a locking ramp for vibration-resistant mating.

Pitch, footprint, and retention

The 3.00 mm mating pitch and 3.00 mm row spacing define a board footprint that balances routing density with clearance for 600 VAC/DC traces.

Frequently asked questions

What is the mating half for this header?

The 10127720-201LF is a male pin header designed to mate with a Minitek® Pwr 3.0 receptacle housing (not included). The locking ramp and 4-wall shrouding align with the matching receptacle.

What compliance documentation is available for the 10127720-201LF?

RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) upon request.
