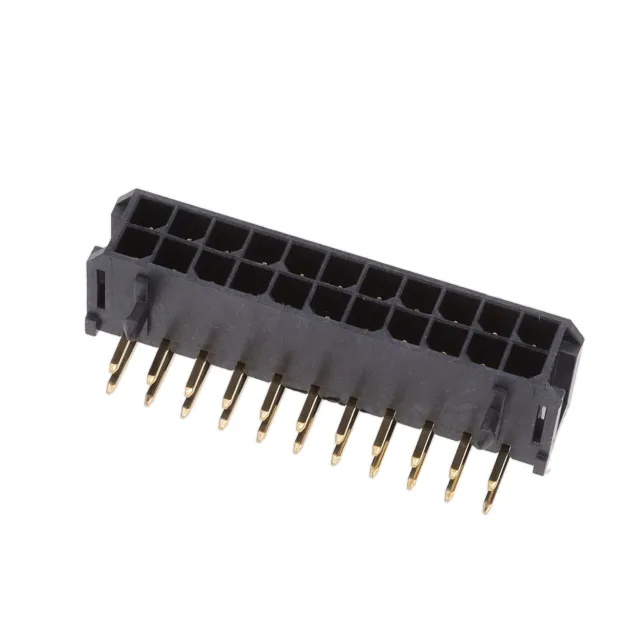

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127720-222LF, 22-position dual-row, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, gold flash contacts, board lock, locking ramp, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 3.0 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.285\" (7.25mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
The 10127720-222LF is a 22-position, dual-row header from the Minitek® Pwr 3.0 series by Amphenol ICC (FCI). Contacts are male pin, square shape, made from copper alloy with gold flash plating on the mating surface.
Voltage rating is 600 VAC/DC, which is the maximum working voltage between adjacent circuits.
Yes, the 10127720-222LF includes a board lock feature.
