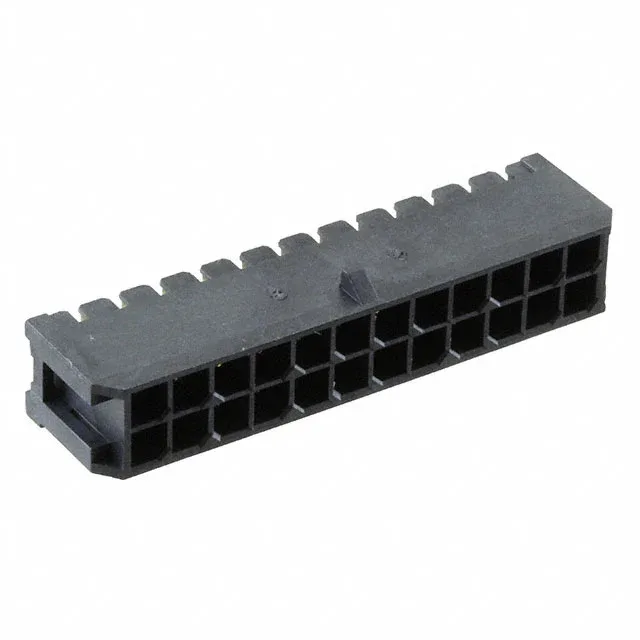

10127720-242LF — Amphenol product photo
Amphenol

10127720-242LF Amphenol ICC Minitek Pwr 3.0 Header 24 Pos

MPN10127720-242LF
Active

Amphenol ICC (FCI) Minitek® Pwr 3.0, 24-position, dual-row, 3.00 mm pitch, right-angle, shrouded header with board lock, gold flash male pins, locking ramp, UL94 V-0, -40°C~105°C.

$1.8900Ref. price · indicative, final on quote
10127720-242LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10127720-242LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 3.0
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.285\" (7.25mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions24
Row spacing - mating0.118\" (3.00mm)
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - matingFlash

Product details

24-Position Right-Angle Header for Wire-to-Board Power Distribution

The 10127720-242LF: Contact finish is gold flash over copper alloy — the flash layer is sufficient for intermittent mating in a controlled environment; for applications requiring hundreds of mating cycles, a thicker gold plating (15 or 30 µinch) on the receptacle side is recommended.

Board Lock and Through-Hole Termination for Reliable Solder Anchoring

This is particularly important for a right-angle header, where the cable exit direction exerts shear force on the solder joints — the board lock absorbs that strain before it reaches the pin-to-solder interface.

Frequently asked questions

What is the mating connector for 10127720-242LF?

The mating half is a Minitek Pwr 3.0 receptacle housing (female, crimp-type) of the same 24-position, 3.00 mm pitch, dual-row configuration. The locking ramp on this header engages with the latch on the receptacle. Confirm the receptacle part number from the same series for your wire gauge and seal requirements.
