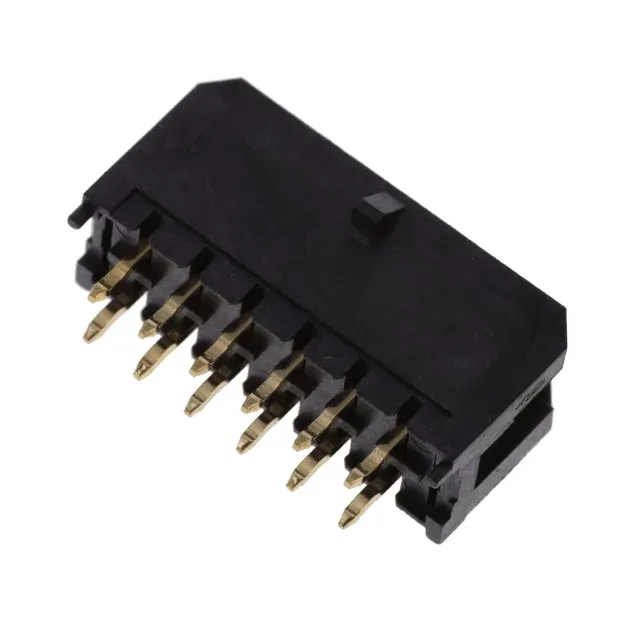

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127721-122LF, 12 positions, 2 rows, 3.00 mm pitch, shrouded 4-wall, locking ramp, through-hole, gold flash on mating and post, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 3.0 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.433\" (11.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
The 10127721-122LF: This is a 12-position, 2-row, 3.00 mm pitch header from the Minitek® Pwr 3.0 series, designed for board-to-wire applications.
The post finish is also gold flash, which maintains solderability over long storage.
It is RoHS compliant.
10127721-122LF is sourced through independent distribution.
The pitch is 3.00 mm (0.118") on both the mating interface and the row spacing. Mounting type is through-hole with a kinked pin and solder termination.
