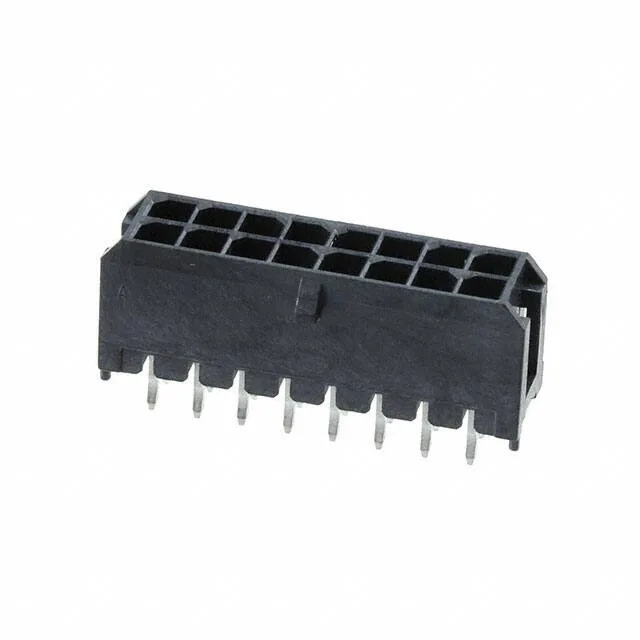

16-Position, 3.00 mm Pitch Header for Wire-to-Board Power
The 10127721-161LF: The through-hole termination with kinked pins secures the component during soldering and resists pull-out forces from cable strain.
Tin-Plated Contacts and Wide Temperature Range
Both the mating contact finish and the post finish are 100.0 µinch tin over copper alloy. Tin plating is cost-effective for moderate mating cycle counts and performs well in dry-circuit signal applications where gold is not required.
It is RoHS compliant per the entry. Sourced to order against your BOM quantity — availability and current pricing confirmed at quote time.
The Minitek® Pwr 3.0 series includes 12-position (10127721-121LF) and 14-position (10127721-141LF) versions with identical pitch, plating, and locking ramp. If your BOM calls for fewer circuits, these are drop-in replacements on the same 3.00 mm pitch footprint — only the number of loaded positions changes.
