Amphenol 10127721-201LF

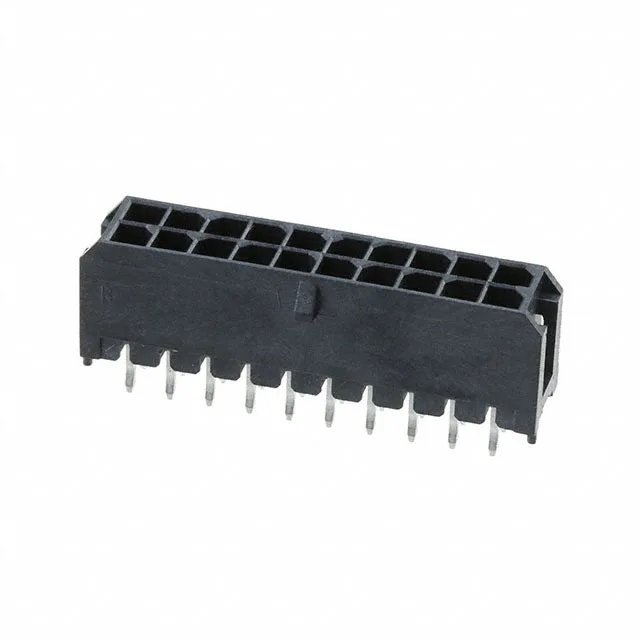

10127721-201LF Amphenol ICC Minitek Pwr 3.0 Header 20 Pos

MPN 10127721-201LF
Active

Amphenol ICC (FCI) Minitek® Pwr 3.0 series, 10127721-201LF, 20-position, 2-row, shrouded 4-wall header, 3.00 mm pitch, through-hole, kinked pin solder termination, tin-plated contacts, locking ramp, UL94 V-0, -40°C to 105°C.

$1.3700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesMinitek® Pwr 3.0
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

10127721-201LF key specifications
ParameterValue
SeriesMinitek® Pwr 3.0
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.433\" (11.00mm)
Insulation materialThermoplastic

All specifications

10127721-201LF additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions20
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Mount and Mating Fit

Termination and Contact Plating

Kinked pin solder tails — the kink provides a press-fit retention in the plated through-hole before wave solder, so the header stays put during assembly handling. Post length is 0.126" (3.20 mm), enough for a standard 1.6 mm PCB with good solder fillet visibility. Tin is the economical choice for moderate mating cycle duty — expect several hundred cycles before contact fretting becomes a concern. Current rating depends on wire gauge in the mating half — the header itself is rated per the system derating curve. In practice, with 20 AWG wire, each contact handles about 5 A at a 30°C temperature rise; the 3.00 mm pitch keeps adjacent contacts cool enough for that current density.

RoHS compliant, UL94 V-0 housing. No direct drop-in replacement from Amphenol ICC; the Minitek Pwr 3.0 family covers the same pitch and current class, so a different position count or plating option would require a board layout change.

MPN
10127721-201LF
