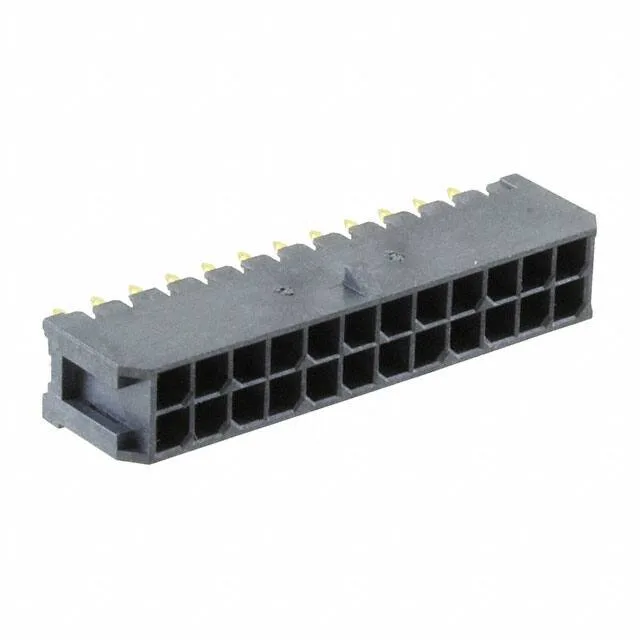

10127721-242LF — Amphenol product photo
Amphenol

10127721-242LF Amphenol ICC Minitek Pwr 3.0 Header 24 Pos

MPN10127721-242LF
Active

Amphenol ICC (FCI) Minitek® Pwr 3.0 header, 10127721-242LF, 24 positions, 2 rows, 0.118" (3.00 mm) pitch, shrouded with locking ramp, through-hole, kinked pin solder termination, gold flash contacts, UL94 V-0, -40°C~105°C.

$1.1500Ref. price · indicative, final on quote
10127721-242LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10127721-242LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 3.0
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.433\" (11.00mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions24
Row spacing - mating0.118\" (3.00mm)
Contact finish - postGold
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash

Product details

The 10127721-242LF is the 24-position variant. If your BOM calls for fewer circuits, the same series offers 12-position (10127721-122LF) and 8-position (10127721-082LF) versions, all sharing the same 3.00 mm pitch, dual-row layout, gold flash contacts, and locking ramp. The board footprint shrinks with the position count, but the mating receptacle family stays consistent across the series.

It is RoHS compliant.

This header mates with Minitek® Pwr 3.0 crimp-style receptacle housings (same series). Termination is through-hole with kinked pins for retention during soldering.

Frequently asked questions

What is the closest alternative to 10127721-242LF within the same series?

The 12-position version, 10127721-122LF, shares the same 3.00 mm pitch, dual-row layout, gold flash contacts, and locking ramp. If your design needs fewer positions, that is a direct drop-in for the same footprint length.

How can I order 10127721-242LF or check stock?

Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
