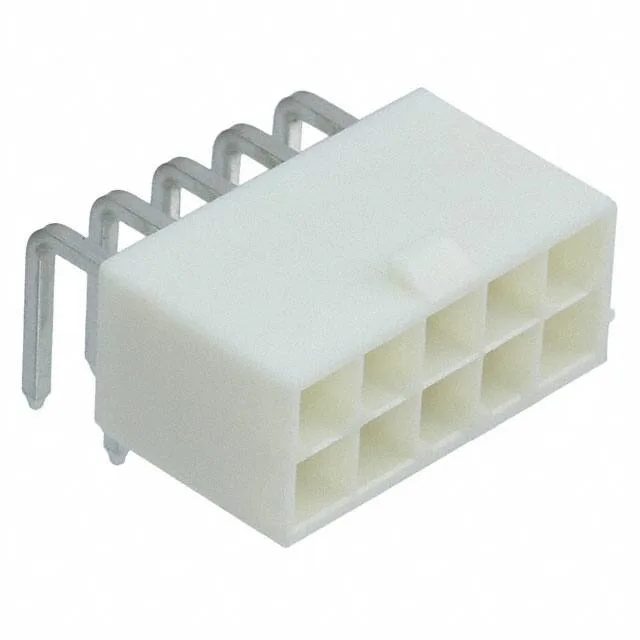

10127819-10211LF — Amphenol product photo
Amphenol

10127819-10211LF Amphenol ICC Minitek Pwr 4.2 Header 10 Pos

MPN10127819-10211LF
Active

Amphenol ICC (FCI) Minitek® Pwr 4.2 header, 10127819-10211LF, 10 positions, 4.20mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0.

$0.8400Ref. price · indicative, final on quote
10127819-10211LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10127819-10211LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 4.2
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorNatural
Insulation height0.386\" (9.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions10
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - mating100.0µin (2.54µm)

Product details

10-Position Right-Angle Header for Wire-to-Board Power

The 10127819-10211LF: The 4.20mm pitch and 4.20mm row spacing set the board footprint for a power interconnect that handles up to 600V, with current rating varying by the wire gauge used in the mating half.

Tin Plating and Contact Finish

The contact material is brass, a standard choice for pin headers that balances conductivity and spring properties.

The 10127819 base product number covers a family of right-angle headers with identical pitch, row spacing, plating, and locking ramp. The 10-position variant (10211LF) sits between the 8-position (08211LF) and the 4-position (04211LF) options. For a 2-position version, the 02211LF is available.

Frequently asked questions

How can I order 10127819-10211LF or check stock?

Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
