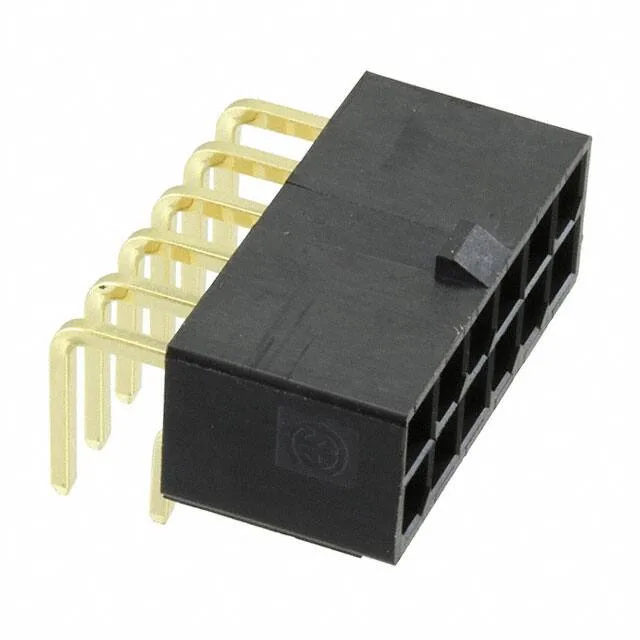

Amphenol Minitek® Pwr 4.2 header, order code 10127819-12121LF, 12 positions, dual row, 4.20 mm pitch, 600 V, gold flash mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 4.2 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 12 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
The 10127819-12121LF is the 12-circuit member of Amphenol's Minitek® Pwr 4.2 header line, a shrouded board-to-wire power interconnect. It carries gold flash mating contacts rated 600 V, mounts through-hole right-angle, and terminates with solder.
The header uses a locking ramp fastening system for positive retention against vibration.
The 10127819-12121LF is a Board to Cable/Wire header from the Minitek® Pwr 4.2 series.
