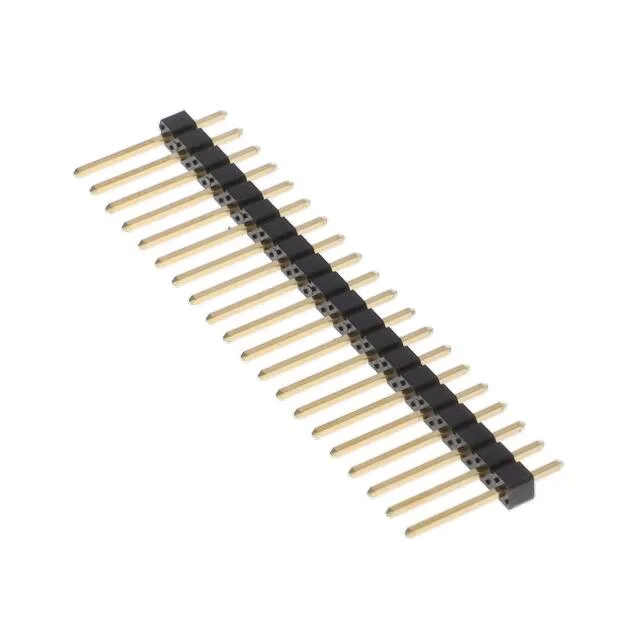

Amphenol ICC (FCI) EconoStik™ 10129378-920003BLF, unshrouded male pin header, 20 positions, 0.100" (2.54 mm) pitch, through-hole solder, gold flash on mating contact, 3 A, UL94 V-0, bulk pack.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129378 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.538\" (13.67mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
This is a low-cycle finish — suitable for occasional mating in a controlled environment, not for repeated disconnect/reconnect duty or corrosive atmospheres. The per-contact current rating is 3 A, and the voltage rating is 110 VDC.
It is unshrouded — there is no plastic shroud around the pins. The mating housing must provide the polarization and keying.
Sourced to order against your BOM quantity through independent distribution. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
