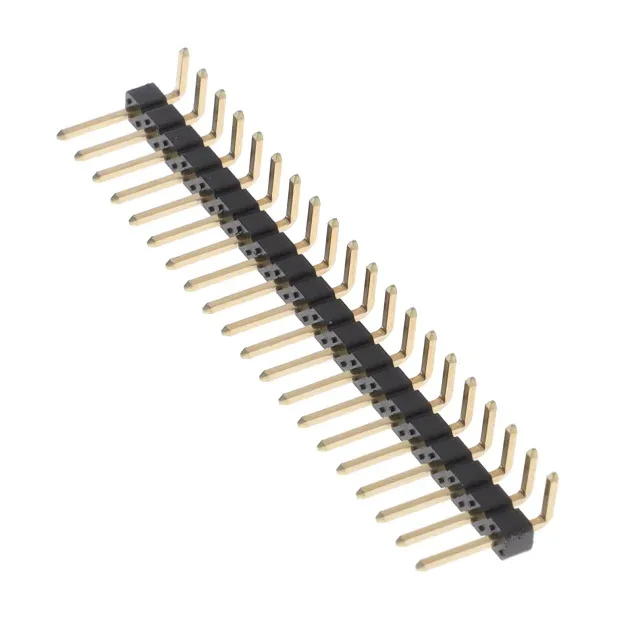

Amphenol ICC (FCI) EconoStik™ 10129379 series, 10129379-920001BLF — 20-position single-row unshrouded male pin header, 0.100" (2.54mm) pitch, right-angle through-hole termination, gold-plated mating contacts, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129379 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
Insulation height of 0.095" (2.41mm) keeps the body low above the board, and the black UL94 V-0 thermoplastic housing meets flame-rating requirements for equipment inside enclosures.
The 20-position 10129379-920001BLF sits between them for medium-density I/O.
The mating pitch is 0.100" (2.54mm), single row, 20 positions all loaded.
Yes, RoHS compliant per the listed compliance data.
10129379-920002BLF is identical in pitch, current rating, plating, mounting, and housing material — same 20 positions and right-angle orientation. The only difference is the color (black vs. black, per evidence). It is a direct functional equivalent for BOM substitution.
