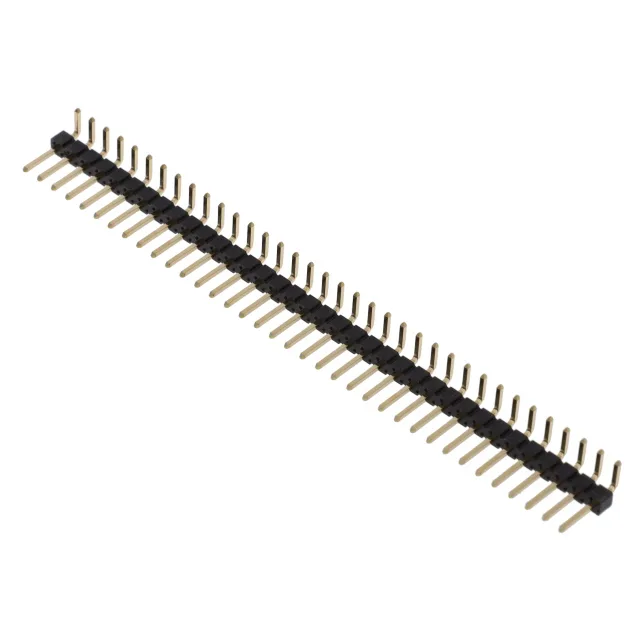

10129379-936001BLF — Amphenol product photo
Amphenol

10129379-936001BLF Amphenol ICC (FCI) EconoStik™ 36-Pin

MPN10129379-936001BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129379 series, 10129379-936001BLF, Board to Board or Cable, 36 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold, 3A, Bulk

$0.8500Ref. price · indicative, final on quote
10129379-936001BLF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129379-936001BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129379
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.095\" (2.41mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions36
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

The 10129379-936001BLF: The gold mating finish (1.00 µinch over copper alloy) provides reliable contact in moderate-cycle applications — think test fixtures, control panels, or instrumentation where the connector is mated a few hundred times over the product life.

Right-Angle Board Fit and Cuttable Design

This flexibility is useful when the BOM calls for a custom position count and the standard 20-position sibling (10129379-920001BLF) or 10-position variant (10129379-910003BLF) doesn't match the exact layout.

Frequently asked questions

Where can I buy 10129379-936001BLF and how do I get a price?

The 10129379-936001BLF is sourced through independent distribution. No stock-holding claim is made; each order is sourced per the BOM line.

What is the closest functional alternative to 10129379-936001BLF?

The closest peer within the same EconoStik™ series is the 20-position 10129379-920001BLF. It shares the same pitch, current rating, gold finish, and right-angle through-hole mounting — only the position count differs. For a 10-position variant, the 10129379-910003BLF is available.
