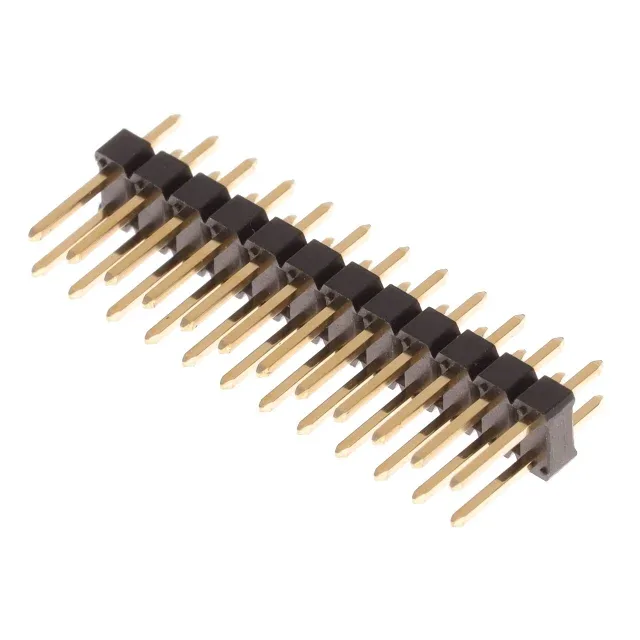

10129381-924001BLF — Amphenol product photo
Amphenol

10129381-924001BLF Amphenol ICC EconoStik Header 24 Pos

MPN10129381-924001BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129381, 24-position dual-row unshrouded male pin header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold flash on mating contacts, rated 3 A, UL94 V-0 black thermoplastic housing.

$0.4400Ref. price · indicative, final on quote
10129381-924001BLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129381-924001BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129381
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Overall contact length0.450\" (11.43mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

Why choose a cuttable 24-position header instead of a fixed-count part?

The 10129381-924001BLF: That means one part number covers multiple BOM line items — a single reel or tube of this header can serve a 24-position, a 12-position, and an 8-position board in the same build, reducing inventory SKU count.

What do the 3 A rating and gold flash mean for your circuit?

The 110 VDC voltage rating covers most low-voltage signal and power distribution inside equipment. For telecom and medical applications (listed application fields), the header meets the creepage and clearance requirements of those standards when used with the matching receptacle.

It is RoHS compliant per. No direct stock-holding claim — quoted per order.

Frequently asked questions

What is the pin pitch of 10129381-924001BLF?

Design engineers need to verify board layout compatibility with 2.54mm pitch.

Is 10129381-924001BLF in stock at major distributors?

Sourcing buyers need real-time stock to avoid production delays.

How many positions does 10129381-924001BLF have?

Buyers must confirm it meets the required 24 positions (2x12) for their BOM.

What is the price of 10129381-924001BLF in quantities of 100?

Procurement needs per-unit cost for budgeting and comparison.

Can 10129381-924001BLF be cut to 8 positions?

Maintenance techs or prototype builders need to know if the cuttable feature works for smaller applications.

What is the replacement or cross for Amphenol 10129381-924001BLF?

If part is EOL or unavailable, buyers need an alternative that fits the same footprint.
