The 10129382-914001BLF: There is no polarisation key or locking ramp, so ensure the mating half is aligned correctly during assembly.
Compliance and Sourcing
Sourced through independent distribution channels.
10129382-914001BLF Amphenol ICC (FCI) EconoStik™ 14-Pin
MPN10129382-914001BLF
Active

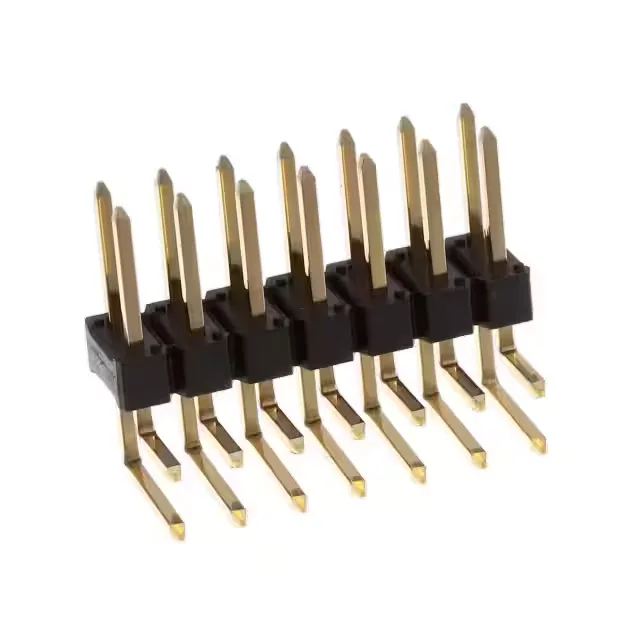

Amphenol ICC (FCI) EconoStik™ 10129382 series, 10129382-914001BLF — 14-position, 0.100" (2.54mm) pitch, through-hole right-angle unshrouded male pin header, gold mating finish, 3 A rating, UL94 V-0 thermoplastic housing, RoHS compliant.
$0.4400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEconoStik™ 10129382
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129382 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
Product details
Frequently asked questions
Where can I buy 10129382-914001BLF and how is it quoted?
No stock-holding claim; sourced per RFQ.
What is the mounting style of 10129382-914001BLF?
Through-hole, right-angle.
Is 10129382-914001BLF RoHS compliant?
Yes, it is RoHS compliant.
Does 10129382-914001BLF have a locking mechanism?
No. The fastening type is push-pull — there is no locking latch or secondary lock. The header relies on the friction fit of the mating socket for retention.
