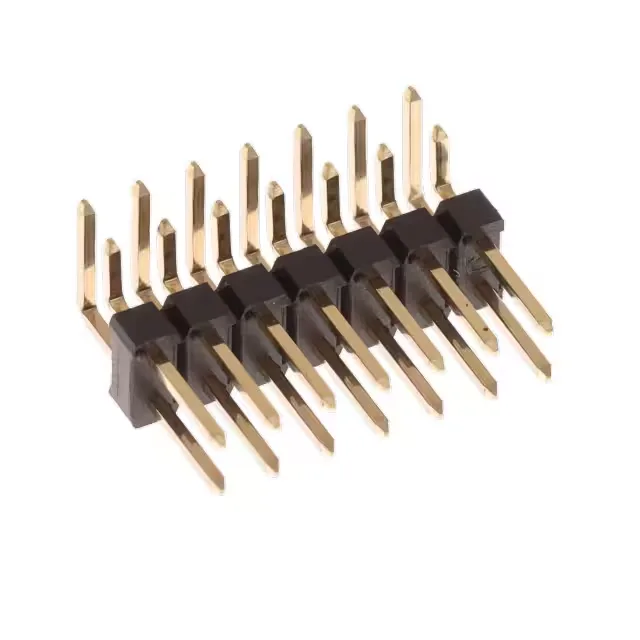

10129382-914002BLF — Amphenol product photo
Amphenol

10129382-914002BLF Amphenol ICC (FCI) EconoStik™ Pin Header

MPN10129382-914002BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129382-914002BLF, 14-circuit dual-row unshrouded header, 0.100" (2.54 mm) pitch, through-hole right-angle, gold-plated mating contacts, 3 A, UL94 V-0 black thermoplastic, bulk.

$0.4300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129382-914002BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129382
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.090\" (2.29mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

Board Layout Fit for a 14-Position Right-Angle Header

The 10129382-914002BLF: In a vibration environment, a secondary locking housing or a dab of adhesive on the header posts is worth considering.

Sourcing and Lifecycle — Active Production, No LTB Concern

Sourced through independent distribution; quoted to order against your BOM quantity. Availability and current pricing confirmed at RFQ time — no stock-holding claim on this listing.

Mating and Termination — What Connects to It

The square male pins (0.025" square typical for this pitch class) insert into the receptacle's contact beams. The push-pull retention means the mating pair stays together by friction; no latch to snap.

Frequently asked questions

Where can I buy 10129382-914002BLF and what is the lead time?

No stock-holding claim on this listing; submit a quote request for the latest lead time and price.

Can 10129382-914002BLF be cut to a shorter length?

The connector type is listed as 'Header, Cuttable' — the pin strip can be cut to a desired number of positions. However, the 14-position variant is already a standard length; cutting it would leave an open end. For a specific circuit count, consider ordering the exact position variant (e.g., 10-position 10129382-910001BLF) if available.
