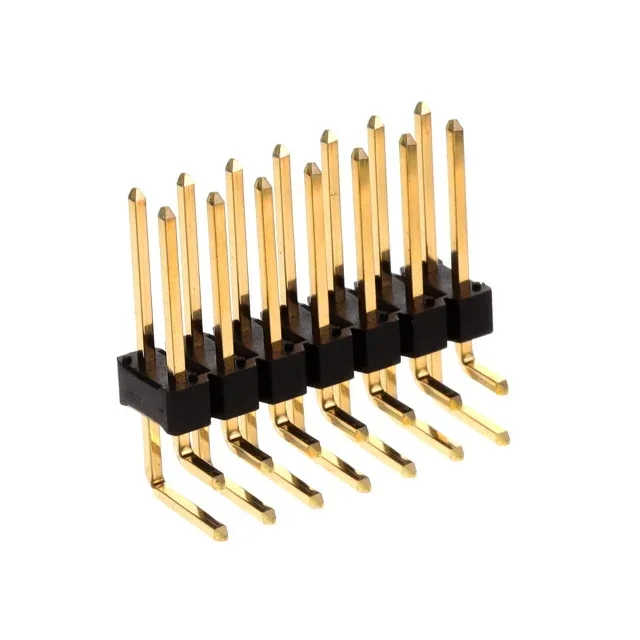

Amphenol ICC (FCI) EconoStik™ 10129382-914004BLF, 14-position, 0.100" (2.54mm) pitch, unshrouded, right-angle through-hole pin header, gold flash contacts, 3 A, UL94 V-0, RoHS.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129382 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
The 10129382-914004BLF: The thin gold layer provides enough corrosion resistance for low-cycle applications — think test fixtures, programming jigs, or equipment that sees only occasional reconnects.
The header is designated as 'cuttable' — the 14-position strip can be broken to smaller lengths, giving you the option to populate a custom number of positions on the board without ordering a dedicated part number.
10129382-914004BLF is an active part.
Confirm the mating half's pin count matches your 14-position layout.
Yes, the header is designated as cuttable. The 14-position strip can be broken to a custom length, but the break must be clean to avoid damaging adjacent pins.
