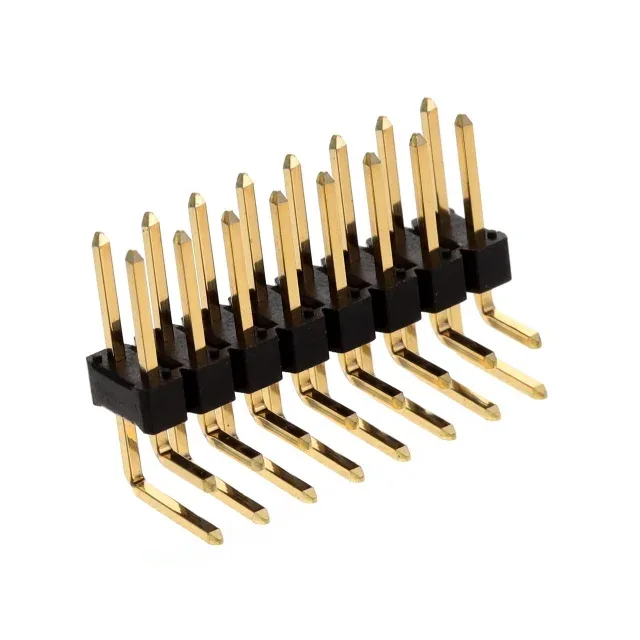

10129382-916001BLF — Amphenol product photo
Amphenol

10129382-916001BLF Amphenol ICC (FCI) EconoStik 16-Pin

MPN10129382-916001BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129382, 16-position, 2-row, right-angle through-hole header, 2.54mm pitch, unshrouded, gold-plated square pins, UL94 V-0, RoHS, Active.

$0.4300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129382-916001BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129382
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

Right-Angle 16-Pin Header for Board-to-Board and Cable Interconnects

The 10129382-916001BLF: The unshrouded, cuttable strip lets you break the 16-position block to a custom length, which simplifies BOM management when you need fewer circuits on a single assembly.

Board Layout Fit: Pitch, Orientation, and Footprint

These dimensions determine the board thickness range and the mating depth with a receptacle. Verify the PCB hole diameter and the mating connector's insertion depth before committing the layout.

Comparing 16-Position vs 14-Position Siblings

The 16-position 10129382-916001BLF and the 14-position 10129382-914002BLF share identical pitch, plating, orientation, and material. If your BOM calls for 14 circuits, the 16-position strip can be cut down, but the 14-position part avoids the extra handling step.

Frequently asked questions

Is 10129382-916001BLF RoHS compliant?

Yes, this part is RoHS compliant per the manufacturer's listing.

What is the mating connector for 10129382-916001BLF?

Common mates include the EconoStik™ receptacle series or generic 0.100" pitch crimp housings. Confirm the mating pin length and row spacing match your chosen receptacle.
