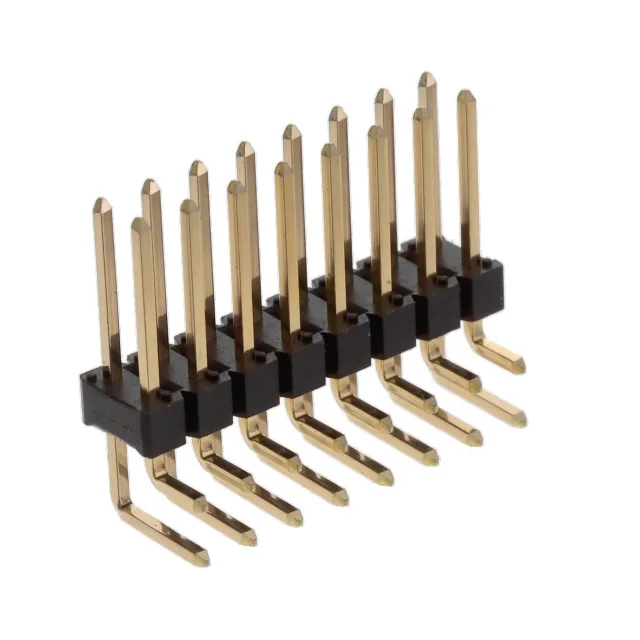

10129382-916004BLF — Amphenol product photo
Amphenol

10129382-916004BLF Amphenol ICC (FCI) EconoStik™ 16-Pin

MPN10129382-916004BLF
Active

Amphenol ICC (FCI) EconoStik™ 10129382, 10129382-916004BLF — 16-position, 2-row, 0.100" (2.54mm) pitch, right-angle through-hole unshrouded header, gold-plated male pins, UL94 V-0 black thermoplastic, RoHS compliant, 3 A, 110 VDC.

$0.4500Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129382-916004BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129382
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.090\" (2.29mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

Cuttable Design for BOM Flexibility

The 10129382-916004BLF: This header is marked as cuttable, meaning a single 16-position part can be broken down to serve lower position counts on the same 0.100" pitch. Compare with the 14-position sibling 10129382-914002BLF, which carries the same pitch, gold plating, and current rating but is a fixed 14-position part — the cuttable version gives you the option to field-modify if the BOM changes.

Through-Hole Solder Termination, UL94 V-0 Housing

Termination is solder-only — the through-hole posts are 0.090" (2.29mm) long, designed for wave or hand soldering into plated through-holes on a standard 0.062" board.

Frequently asked questions

Is 10129382-916004BLF RoHS compliant?

Yes, the 10129382-916004BLF is listed as RoHS compliant per the manufacturer's compliance data.

What is the closest alternative to 10129382-916004BLF?

The 10129382-916001BLF is a functional peer with the same pitch, gold plating, current rating, and right-angle orientation, but it is a 16-position part as well — the main difference is the cuttable feature on this order code.
