10129382-930001BLF — Amphenol product photo
Amphenol

10129382-930001BLF Amphenol ICC (FCI) EconoStik™ Header

MPN10129382-930001BLF
Active

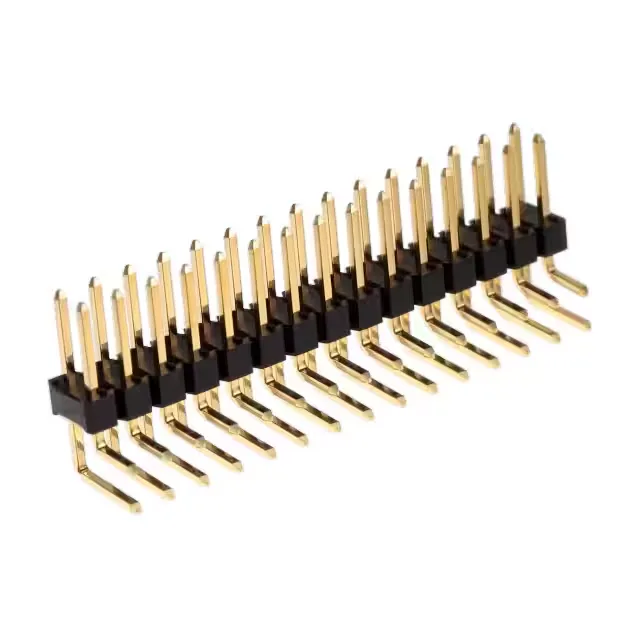

Amphenol ICC (FCI) EconoStik™ 10129382 series, 10129382-930001BLF — 30-position dual-row unshrouded male pin header, 0.100" (2.54 mm) pitch, right-angle through-hole termination, gold flash mating finish, rated 3 A per contact, UL94 V-0 black thermoplastic housing.

$0.8000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10129382-930001BLF Technical Specifications
ParameterValue
SeriesEconoStik™ 10129382
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader, Cuttable
Fastening typePush-Pull
Voltage rating110VDC
Current rating3A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions30
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating1.00µin (0.025µm)

Product details

30-Position Dual-Row Unshrouded Header at 0.100" Pitch

The 10129382-930001BLF: The header is unshrouded, so the pins are exposed for mating with standard female receptacles or cuttable strips.

3 A per Contact with Gold Flash — Signal-Duty Current Ceiling

The 1.00 µinch gold flash over nickel on the mating face provides corrosion resistance for moderate mating cycles — think a few dozen insertions over the product life, not field-service reconnect duty.

Active Production, RoHS Compliant — Sourced per RFQ

It is RoHS compliant, which covers EU and many global market requirements. No stock-holding claim — quoted to order per RFQ.

Frequently asked questions

Where can I buy 10129382-930001BLF and how do I get a price?

No stock-holding claim — we source per order.

Is 10129382-930001BLF RoHS compliant?

Yes, it is RoHS compliant per the manufacturer's listing.

What is the pinout of 10129382-930001BLF?

The pinout follows standard dual-row numbering — pin 1 is typically marked by a chamfer or notch on the housing.

What is the mating connector for 10129382-930001BLF?

Common mates include Amphenol ICC (FCI) EconoStik™ receptacle housings or generic 2.54 mm pitch IDC sockets. Confirm the receptacle's circuit count and row spacing match the header.
