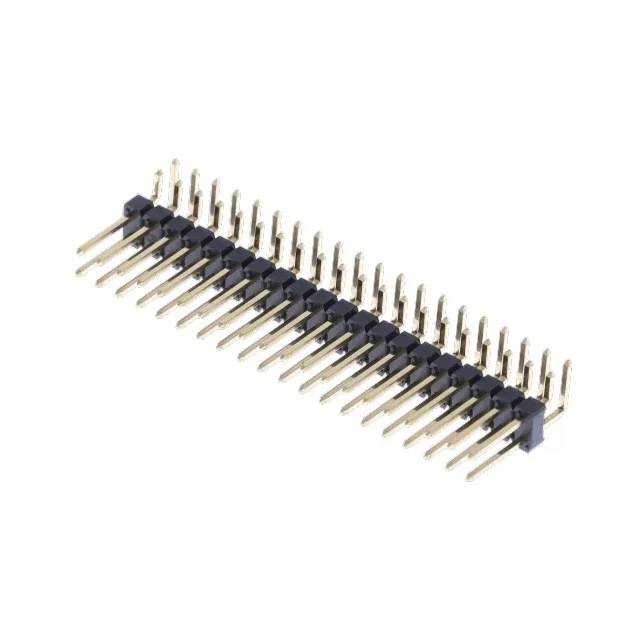

Amphenol ICC (FCI) EconoStik™ 10129382, 10129382-940004BLF — 40-position, 2-row, 0.100" (2.54mm) pitch unshrouded header, right-angle through-hole, gold-plated male pins, 3A, 110VDC, UL94 V-0 black thermoplastic, bulk.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129382 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
The 10129382-940004BLF: The male pins are square, gold-plated (1.00µin thickness), and mate with standard 0.100" pitch receptacles.
The header is marked as cuttable — the pin rows can be broken to shorter lengths for prototyping or non-standard position counts. The 0.318" (8.08mm) mating pin length provides good wipe for standard receptacles, while the 0.090" (2.29mm) post length suits typical 1.6mm PCBs.
The 30-position variant 10129382-930001BLF is the closest sibling — same pitch, plating, orientation, and current rating, just fewer positions. If you need the same 40 positions, this is the only option in the EconoStik™ 10129382 right-angle subgroup.
