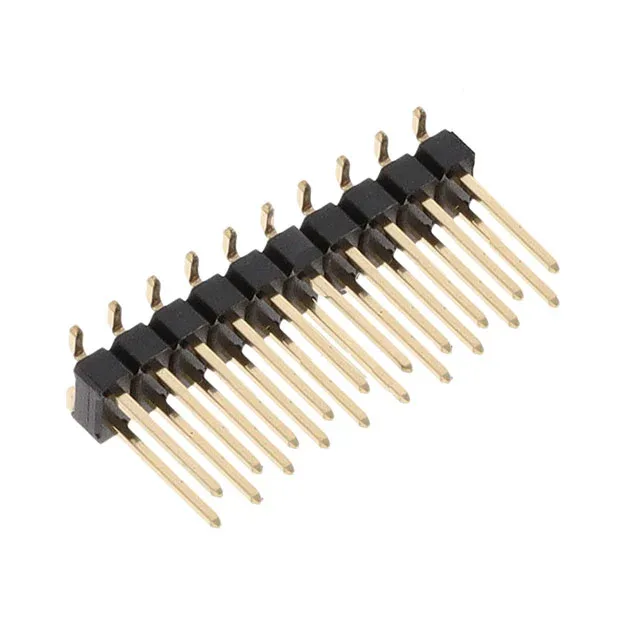

Amphenol ICC (FCI) EconoStik™ 10129383-920001ALF, 20-position, 0.100" (2.54 mm) pitch, unshrouded male pin header, surface-mount, gold-plated contacts, 3 A, 110 VDC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129383 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
The 10129383-920001ALF: The header is cuttable, meaning you can break it to a smaller position count for prototyping or low-volume builds — useful when the BOM calls for an odd number of circuits.
The 10129383-920001ALF is an active part from Amphenol ICC (FCI). Submit a quote request for current availability.
Yes, the 10129383-920001ALF is listed as RoHS Compliant.
