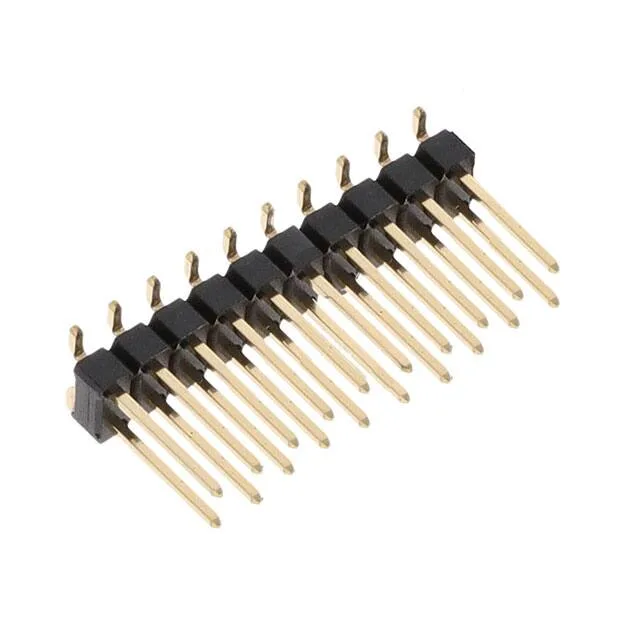

Amphenol ICC (FCI) EconoStik 10129383 header, order code 10129383-920002BLF, 20 positions, dual row, 2.54 mm pitch, 3 A, 110 VDC, unshrouded, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | EconoStik™ 10129383 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Voltage rating | 110VDC |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
The 10129383-920002BLF is the 20-circuit member of Amphenol ICC (FCI)'s EconoStik 10129383 header line, a cuttable board-to-board or cable header in a dual-row 2.54 mm pitch layout. It is unshrouded with push-pull fastening, mounts surface-mount with solder termination, and carries gold-plated mating contacts rated 3 A at 110 VDC.
