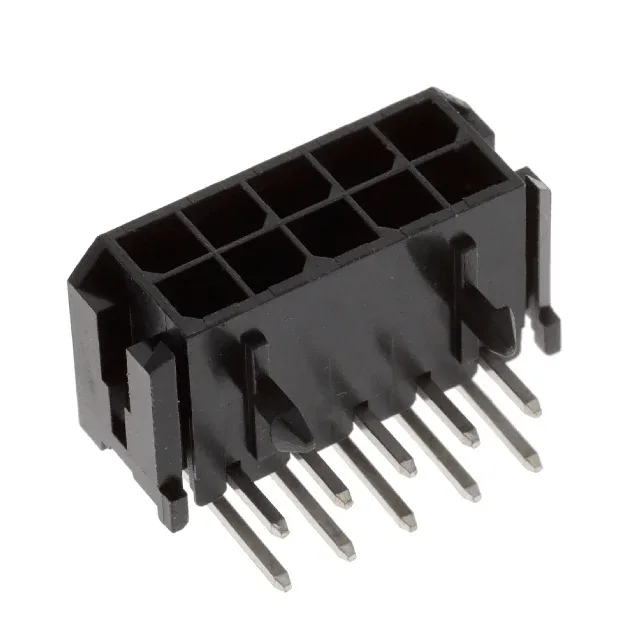

10-Position, 3.00 mm Pitch, Right-Angle Header for Board-Edge Power Distribution
Board Lock and Glow Wire Compliance for Appliance and Telecom Builds
The board lock feature secures the header during wave or selective soldering — the locking tabs snap into plated through-holes, holding the component in place against board handling and reflow forces. This is particularly useful in high-vibration environments like telecom base stations or industrial controllers. Glow wire compliant (per IEC 60335-1) means the PA9T housing material passes the glow-wire test at 750°C or higher, a requirement for household appliances, lighting fixtures, and certain medical equipment. The UL94 V-0 flammability rating confirms the housing self-extinguishes within 10 seconds under flame.
Active Production and Sourcing for Volume Builds
The part ships in tray packaging, which is standard for through-hole headers and feeds well into selective soldering lines.
