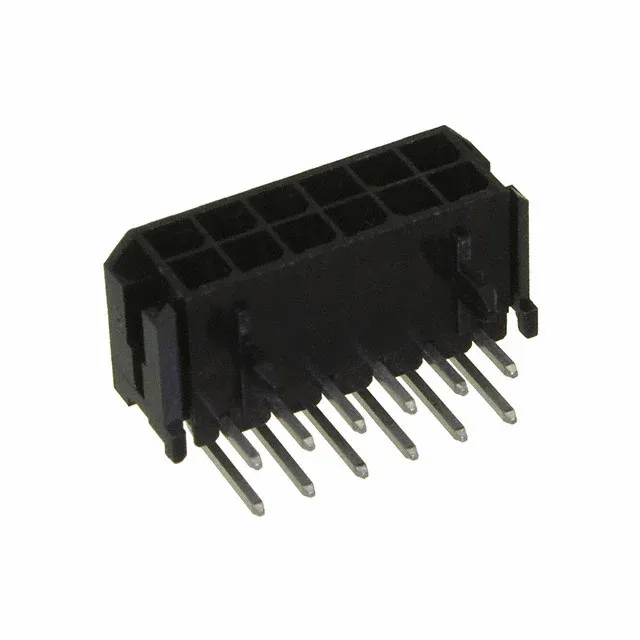

12-Position 3.00 mm Pitch Shrouded Header for Board-to-Wire Power
The 10132449-1221GLF: Board locks on the mounting tabs anchor the header during soldering and provide additional shear-force resistance from cable strain. The housing is glow wire compliant per IEC 60335-1, making it suitable for appliances and equipment requiring flame-resistant interconnects.
No official direct replacement or cross-reference is recorded — the 12-position, 3.00 mm pitch, right-angle shrouded configuration is specific to this order code.
The right-angle orientation places the solder tails perpendicular to the board edge, simplifying wave solder or hand-solder assembly.
Environmental and Compliance Ratings
Current rating is specified as varying by wire gauge — in the Minitek® Pwr 3.0 High Current series, the contact design supports up to 8 A per circuit with appropriate wire size, though the exact derating depends on the mating receptacle terminal and ambient temperature. Voltage rating is 250 V. Applications listed include general purpose, medical, military, and telecommunications — the combination of glow wire compliance, wide temperature range, and locking ramp makes it a fit for both commercial and regulated equipment.
