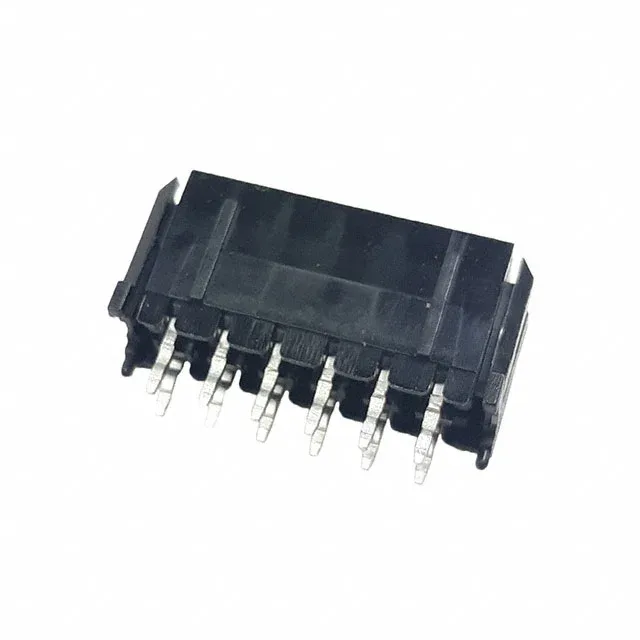

Amphenol ICC (FCI) Minitek® Pwr 3.0 High Current header, 12 positions, 2 rows, 3.00 mm pitch, shrouded - 4 wall, locking ramp, through-hole, kinked pin solder termination, tin mating finish, UL94 V-0, -40°C~105°C, 250V, RoHS.
| Parameter | Value |
|---|---|
| Series | Minitek® Pwr 3.0 High Current |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 10132450-1221GLF: A board guide on the housing aids alignment during assembly, reducing pin damage risk.
It is RoHS compliant.
Termination is through-hole with kinked pins and solder — the kink provides retention during wave soldering before the solder joint solidifies. The mating half is a Minitek® Pwr 3.0 High Current receptacle housing (crimp terminals required).
