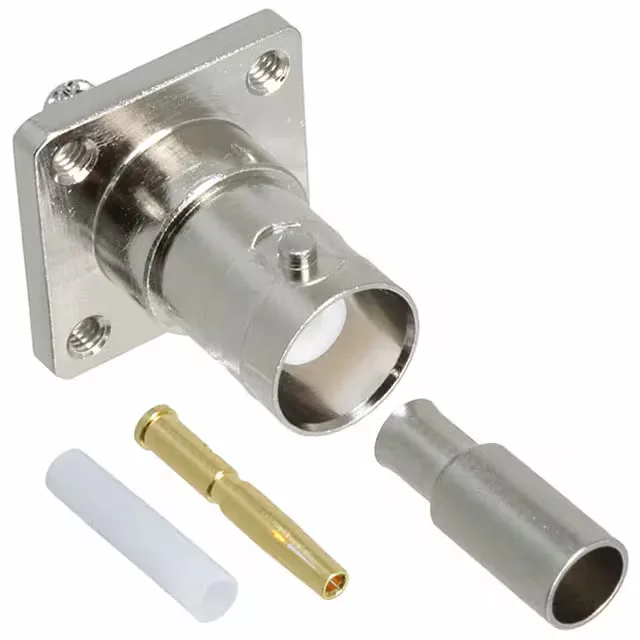

112288-11 — Amphenol product photo
Amphenol

Amphenol RF 112288-11 BNC Jack, 50 Ohm, 4 GHz, Crimp

MPN112288-11
Active

Amphenol RF BNC jack, 50 Ohm, panel mount, crimp termination, 1 port, 500 V, 4 GHz, gold-plated center contact, bulk.

$8.1000Ref. price · indicative, final on quote
112288-11 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112288-11 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureFlange
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 112288-11: It comes as a kit with 4 pieces: the connector body, a crimp contact, a ferrule, and a sleeve — so the buyer gets everything except the cable in one order code. The BNC style means quick mate/unmate with a quarter-turn, and the 500-cycle rating tells you it can handle repeated reconnections in field-service or test equipment without wearing out the gold-plated center contact.

The cable group covers RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174. If your harness uses one of those, the fit is direct; if not, the ferrule and sleeve are sized for those cable diameters, so a different cable would need a different connector variant.

Frequently asked questions

What cables are compatible with the 112288-11 connector?

This BNC jack fits RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables. The kit includes the ferrule and sleeve sized for those cable diameters, so a different cable would need a different connector variant.
