Amphenol RF 112424RP RP-BNC Receptacle, 50 Ohm, 4 GHz

MPN112424RP
Active

Amphenol RF RP-BNC receptacle, male pin, 50 Ohm, 4 GHz, 500 V, 500 mating cycles, panel mount bulkhead, nickel body, gold centre contact, solder cup termination.

$2.7300Ref. price · indicative, final on quote
112424RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112424RP Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
FeaturesExtended Insulation
Includes4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder Tag
Contact terminationSolder Cup
Center contact platingGold

Product details

RP-BNC Panel Receptacle, Male Pin — 50 Ohm to 4 GHz

The Amphenol RF 112424RP is an RP-BNC receptacle with a male centre pin — reverse polarity BNC, so the pin is on the jack side rather than the plug. It mates with a standard RP-BNC plug (female centre contact).

What bolts in — hardware and mount

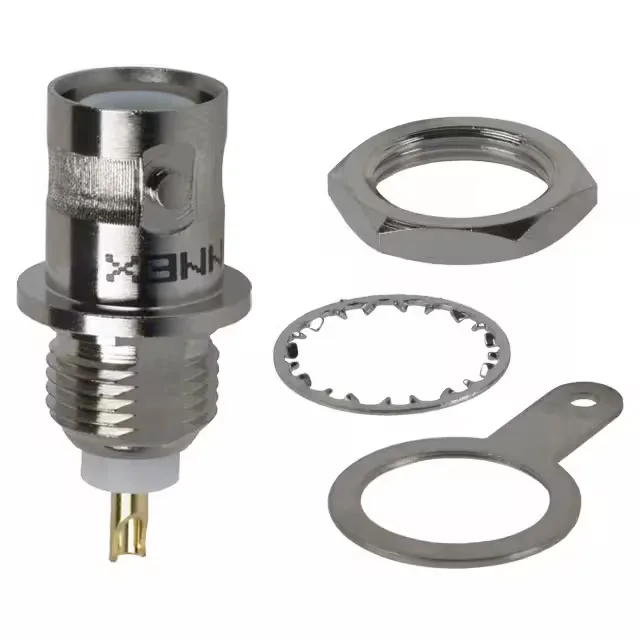

Panel-mount bulkhead with a rear-side nut. The kit includes the connector, lockwasher, nut, and solder tag — everything needed to secure it to a chassis panel. Shield termination is via the solder tag, not the bayonet ring; that tag grounds the braid to the panel. The nickel-plated brass body gives a corrosion-resistant shell, and the bayonet lock mates fast with a quarter-turn — no threads to cross.

Frequently asked questions

What is the impedance of 112424RP?

50 Ohm nominal, rated for use up to 4 GHz. The PTFE dielectric and gold-plated centre contact maintain the impedance through the interface.

Does 112424RP come with mounting hardware?

Yes, the package includes the connector, one lockwasher, one nut, and one solder tag — all needed for a bulkhead panel mount.

Is 112424RP suitable for high-vibration applications?

For extreme vibration, a threaded interface like an SMA or TNC would offer higher retention torque.
