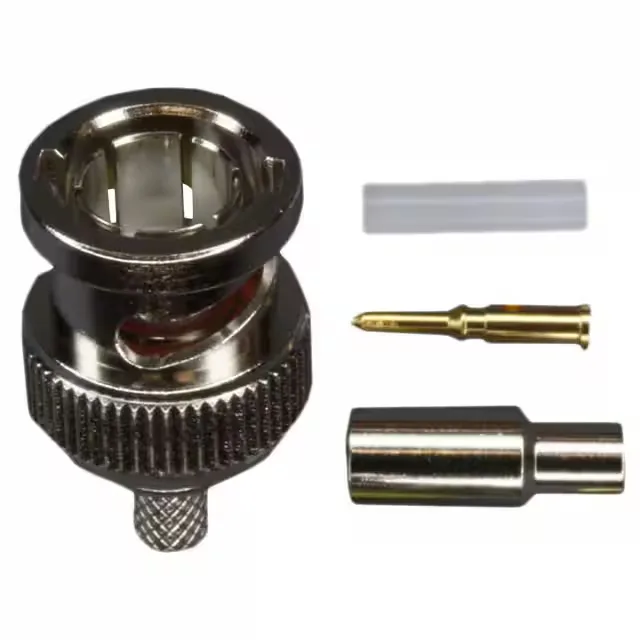

112491-10 — Amphenol product photo
Amphenol

Amphenol RF 112491-10 BNC Plug, 75 Ohm, RGB Video Kit

MPN112491-10
Active

Amphenol RF, BNC plug, 112491-10, 75 Ohm, RGB Video, 1 port, crimp termination, bayonet lock, 4 GHz, 500 V, gold-plated center contact.

$4.6500Ref. price · indicative, final on quote
112491-10 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112491-10 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRGB Video
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 112491-10: It ships as a complete crimp kit: one connector body, one centre contact, one ferrule, and one sleeve — everything needed to terminate a cable in one package. The voltage rating of 500 V is generous for a signal connector — the limiting factor in practice will be the cable's own rating.

Termination and Mating — Crimp and Bayonet Lock

The kit includes the correct ferrule for the shield braid and a sleeve for cable strain relief. The bayonet lock provides a quick, positive mate with a quarter-turn; the locking pins resist vibration-induced disconnect better than a friction-only interface.

Frequently asked questions

What cable group is the 112491-10 designed for?

It is designed for RGB Video cable groups. The kit includes the connector, centre contact, ferrule, and sleeve matched to that cable type.
