The 112515-75: It carries a 4 GHz frequency ceiling and a 500 V voltage rating, with a bayonet lock that gives a quick, secure mate. The 75 Ohm impedance makes this the version you reach for when the signal path is video, CCTV, or telecom baseband — the standard 50 Ohm BNC would reflect energy back into the line and degrade the waveform.

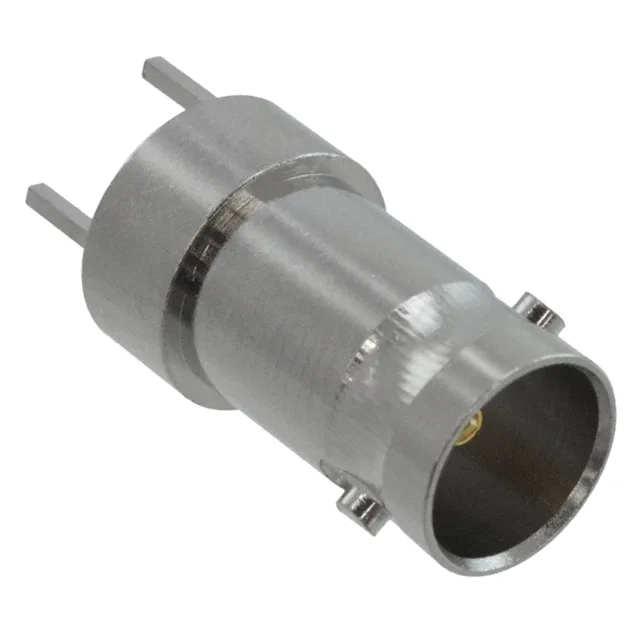

112515-75 Amphenol RF BNC Jack, 75 Ohm, 4 GHz, Through Hole
MPN112515-75
Active
Amphenol RF BNC jack, 75 Ohm, 1 port, through-hole solder, 500 mating cycles, 4 GHz, gold center contact, nickel body.
$4.4900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Impedance | 75Ohm |
All specifications
| Parameter | Value |
|---|---|
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
What is the mounting type of 112515-75?
The 112515-75 mounts through-hole to a PCB, with the shield and center contact both terminated by solder. The bayonet lock provides the mechanical retention after mating.
