The nickel-plated brass body and gold-plated brass center contact give it the corrosion resistance and mating cycle life — rated for 500 cycles — that field-installed coax connectors need.
Cable Group Fit — Which Coax It Terminates
This plug is listed for RG-122, RG-180A, RG-180B, RG-195, Belden 1855, and Belden 1865A cables.

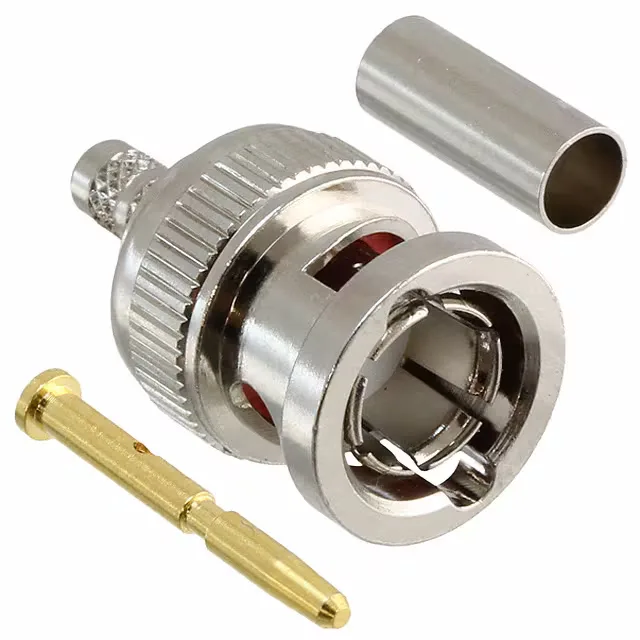

Crimp Termination — What You Get in the Kit
This is a standard two-crimp BNC termination — no solder, no special tooling beyond a hex crimp die set for the ferrule and a centre-contact crimp tool. The PTFE dielectric in the connector body matches the cable dielectric for a consistent 75 Ohm impedance through the joint.
The 31-315-RFX is a 50 Ohm BNC plug — same bayonet-lock style, same 500-cycle rating, but a different impedance that makes it incompatible with 75 Ohm cable assemblies. The 112133 is a 75 Ohm plug like this one, but it is rated to 4 GHz (not 6 GHz) and the kit includes a fourth piece — a sleeve — for a slightly different cable group (RG-179/187 series). If your cable is RG-122, RG-180, or Belden 1855/1865A, the 112955-11 is the correct kit; for RG-179 or RG-187, the 112133 is the match.
