RP-TNC Bulkhead Jack for RG-58 and LMR-195

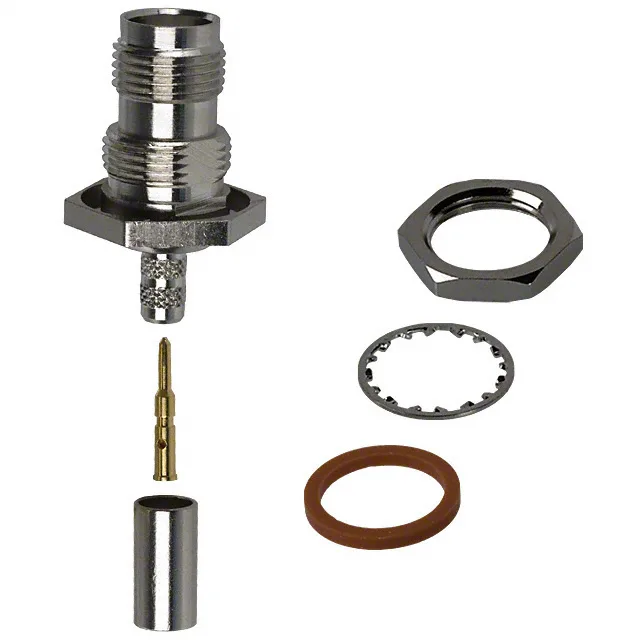

It handles signals up to 11 GHz with a rated insertion loss of 0.18 dB, making it suited for Wi-Fi, ISM-band, and microwave links where the reverse-polarity interface prevents accidental mating with standard TNC hardware. The 50 Ohm impedance matches the common RF system standard. The gasket and lockwasher provide a weather-resistant seal and vibration lock at the panel face, typical for outdoor antenna or enclosure bulkhead feeds.
The 122160RP accepts a defined set of coaxial cables: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. The shield termination uses a crimp ferrule over the braid; the center contact crimps onto the signal conductor. For LMR-195, the connector is a direct fit — no adapter or cable-prep change needed.
RF Performance and Mechanical Durability
The 500 V voltage rating covers the peak RF envelope voltage for typical 50 Ohm systems.
