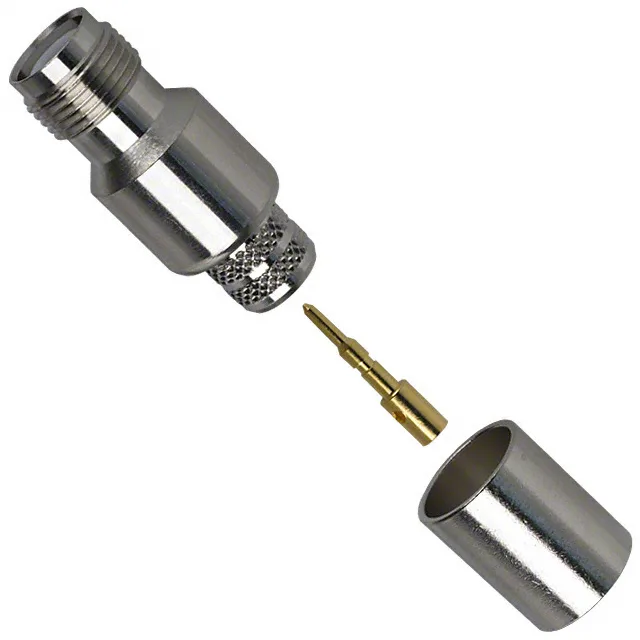

Amphenol RF RP-TNC jack, male pin, 50 Ohm, 11 GHz, 500 V, crimp termination, for Belden 9913/9914/LMR-400, nickel body, gold center contact, bulk pack.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 11 GHz |
| Cable group | Belden 9913, 9914, LMR-400 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.18dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The PTFE dielectric and gold-plated brass center contact keep signal loss in check across the band.
This connector is built for the larger-diameter coax group: Belden 9913, 9914, and LMR-400.
The 122392RP is an active-production part.
This RP-TNC jack is designed for Belden 9913, 9914, and LMR-400 coaxial cables.
Yes, the bulk pack includes three pieces: one connector body, one center contact, and one ferrule.
The specified insertion loss is 0.18 dB across the rated frequency range up to 11 GHz.
