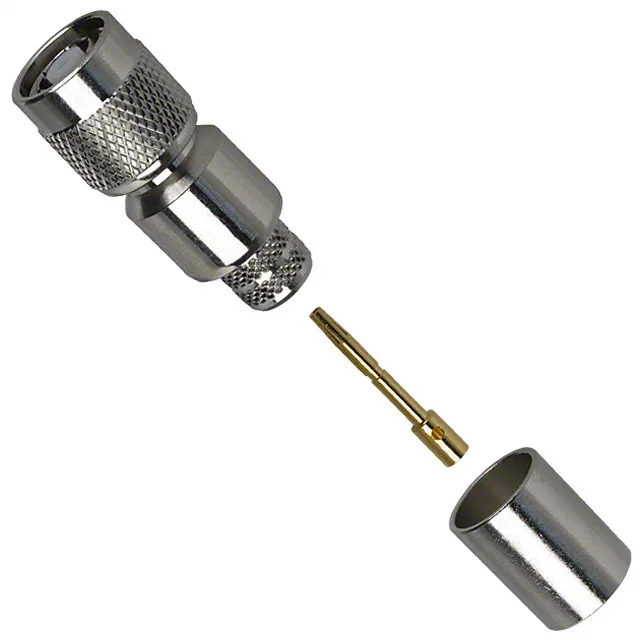

122393RP — Amphenol product photo
Amphenol

122393RP Amphenol RF RP-TNC Plug, 50 Ohm, 11 GHz, LMR-400

MPN122393RP
Active

Amphenol RF RP-TNC plug, female socket, 50 Ohm, 11 GHz, crimp termination, for Belden 9913/9914 and LMR-400 cable, nickel-plated brass body, gold-plated center contact, 500 mating cycles.

$10.5700Ref. price · indicative, final on quote
122393RP datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

122393RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupBelden 9913, 9914, LMR-400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

RP-TNC Plug for LMR-400 and 50 Ohm Systems

The 122393RP is a reverse-polarity TNC (RP-TNC) plug from Amphenol RF, configured as a female socket contact. The nickel-plated brass body and gold-plated phosphor bronze center contact handle 500 mating cycles. The threaded coupling ensures a vibration-resistant mate in outdoor or high-vibration environments. This plug is designed for Belden 9913, 9914, and LMR-400 cable groups. Both the shield and center contact are crimp-terminated, making it a field-installable connector for RF cable assemblies.

Cable Fit and Field Termination

The 122393RP is compatible with LMR-400, Belden 9913, and Belden 9914 cables. The crimp tooling for the shield and center pin is specific to the cable diameter — confirm the die set matches LMR-400 before terminating.

Sourcing and Cross-Reference

The 122392RP is the mating receptacle for this plug, so stock both halves as a pair to avoid an orphan connector on the shelf.

Frequently asked questions

Where can I buy the 122393RP connector?

Pricing and lead time are confirmed at quote time — submit an RFQ for current availability.

Is 122393RP compatible with LMR-400 cable?

Yes, the 122393RP is listed for Belden 9913, 9914, and LMR-400 cable groups. The crimp termination for both shield and center contact is designed for these cable diameters.

What is the equivalent of 122393RP?

The 122392RP is the RP-TNC jack (male pin) counterpart that mates with this plug. It shares the same 50 Ohm impedance, 11 GHz rating, and LMR-400 cable compatibility. Stock both as a mating pair.
