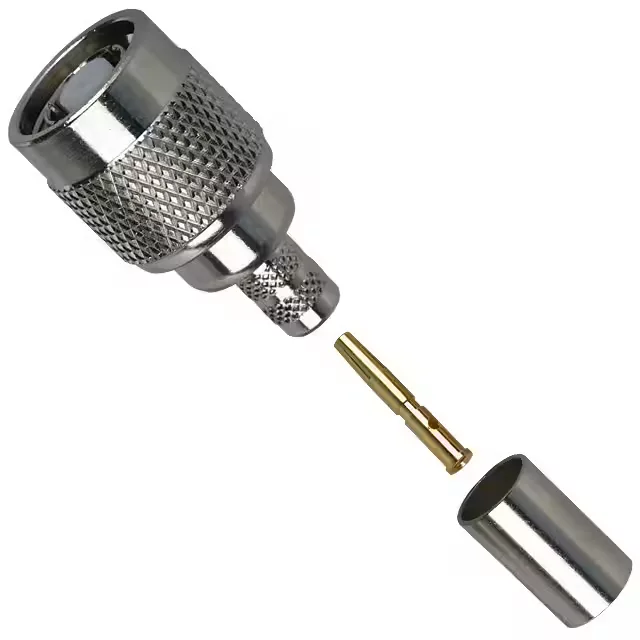

122408RP — Amphenol product photo
Amphenol

Amphenol 122408RP RP-TNC Plug, Female Socket, 11 GHz, 50 Ohm

MPN122408RP
Active

Amphenol RP-TNC plug, female socket, 50 Ohm, 11 GHz, 500 V, crimp termination, for RG-8X/Belden 9258/LMR-240, bulk pack includes connector + contact + ferrule + insulator.

$6.4000Ref. price · indicative, final on quote
122408RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

122408RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupRG-8X, Belden 9258, LMR-240
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

RP-TNC Plug for RG-8X and LMR-240 — 50 Ohm, 11 GHz

The Amphenol 122408RP is an RP-TNC (Reverse Polarity TNC) plug with a female socket centre contact, designed for crimp termination onto RG-8X, Belden 9258, and LMR-240 cables. It ships as a complete crimp kit: one connector body, one contact, one ferrule, and one insulator.

This plug is built for three specific cable types: RG-8X, Belden 9258, and LMR-240. All are 50 Ohm cables, common in Wi-Fi, ISM-band, and land-mobile installations.

500 Mating Cycles — Threaded Reliability

The nickel-plated brass body resists corrosion in outdoor enclosures; the gold-plated centre contact maintains low contact resistance across those 500 cycles.

Frequently asked questions

Is 122408RP a male or female connector?

The 122408RP is a plug with a female socket centre contact — it is the cable-end connector that receives a male-pin RP-TNC jack.

Can 122408RP be used with LMR-240 cable?

Yes, LMR-240 is one of the three cable types listed for this plug, alongside RG-8X and Belden 9258.

What is included in the 122408RP package?

The bulk package includes four pieces: one connector body, one centre contact, one ferrule, and one insulator — a complete crimp kit for one termination.
