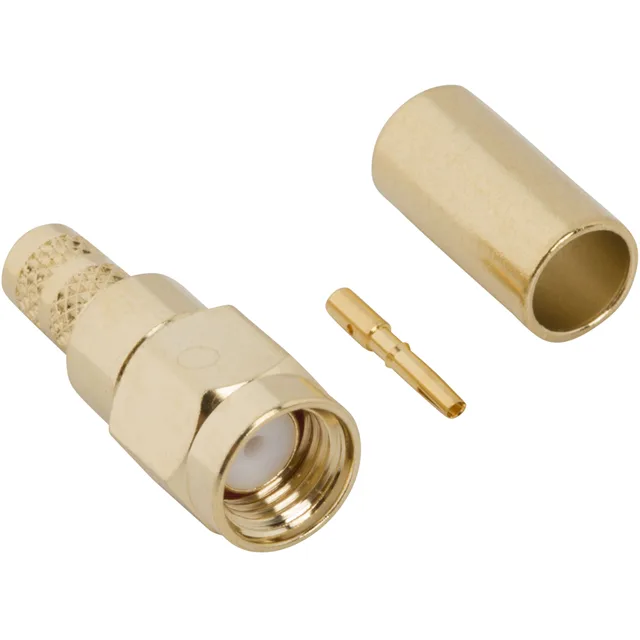

132113RP-10 — Amphenol product photo
Amphenol

Amphenol 132113RP-10 RP-SMA Plug, Female Socket, 500 Cycles

MPN132113RP-10
Active

Amphenol RF RP-SMA plug, female socket, free-hanging, threaded, gold brass body, crimp shield / solder contact, 500 mating cycles, for RG-58C/141/LMR-195, includes connector + contact + ferrule.

$6.4400Ref. price · indicative, final on quote
132113RP-10 datasheet
StockIn Stock (17)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132113RP-10 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeThreaded
Cable groupRG-58C, 141, LMR-195
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
PackageBulk
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Plug for RG-58C, 141, LMR-195

The Amphenol 132113RP-10 is an RP-SMA plug with a female socket centre contact — the reverse-polarity variant of the standard SMA, meaning the gender swap at the interface pin. This plug is designed for RG-58C and LMR-195 cables. The shield terminates via crimp, while the centre conductor is soldered into the contact.

The 132113RP-10 accepts three cable groups: RG-58C, RG-141, and LMR-195. All three are 50-ohm, 0.195-inch-diameter coax with a solid or stranded centre conductor. The crimp ferrule is sized for the cable jacket OD — no separate ferrule sourcing needed. The centre contact is soldered; the shield is crimped. The dielectric is PTFE (Teflon), which keeps the impedance stable through the solder-and-crimp process.

Frequently asked questions

Is 132113RP-10 a male or female connector?

It is an RP-SMA plug with a female socket centre contact — the reverse-polarity configuration means the outer shell is male (threaded) but the centre pin is a socket, so it mates with a standard RP-SMA jack (which has a male centre pin).

Does 132113RP-10 include all necessary components for installation?

Yes, the kit includes three pieces: the connector body, one centre contact, and one crimp ferrule. No additional hardware is needed beyond the cable and soldering/crimping tools.
